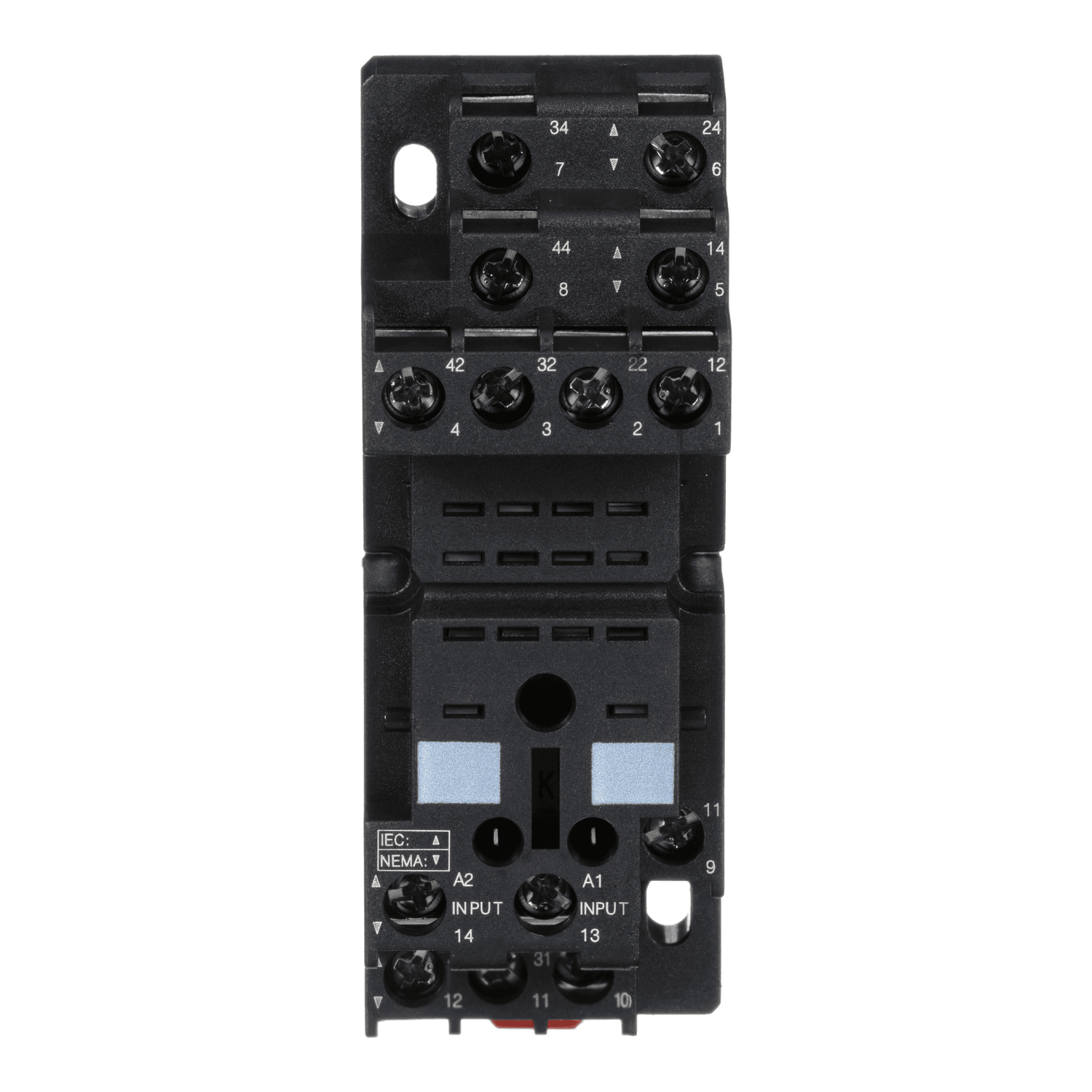

Schneider Electric socket, rated 10 A. Harmony, plugin relay socket, mixed contact, 10 A, 250 V, screw clamp, for RXM2 or RXM4 relays.
Harmony, plugin relay socket, mixed contact, 10 A, 250 V, screw clamp, for RXM2 or RXM4 relays. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony Electromechanical Relays · Harmony Timer Relays |
|---|---|
| Product compatibility | Plug-in relay RXM with 2 C/O contact · Plug-in relay RXM with 4 C/O contact · Plug-in relay REXL with 2 C/O contact · Plug-in relay REXL with 4 C/O contact · Plug-in relay 782H with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 10 A |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| [Ue] rated operational voltage | < 250 V conforming to IEC · < 300 V conforming to UL |
| Connections - terminals | Screw clamp terminals, 1 x 0.34...1 x 1 mm² (22 AWG...17 AWG) flexible with cable end · Screw clamp terminals, 2 x 0.34...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end · Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (20 AWG...16 AWG) solid without cable end · Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end |
| Shape of pin | Flat |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) · Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 8 mm |
| Contact terminal arrangement | Mixed |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 30 mm |
| Product weight | 0.051 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | UL · CSA · Lloyd's |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.600 cm |
| Package 2 Width | 8.900 cm |
| Package 2 Length | 15.500 cm |
| Package 2 Weight | 600.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 12.449 kg |
| Warranty (in months) | 18 |
