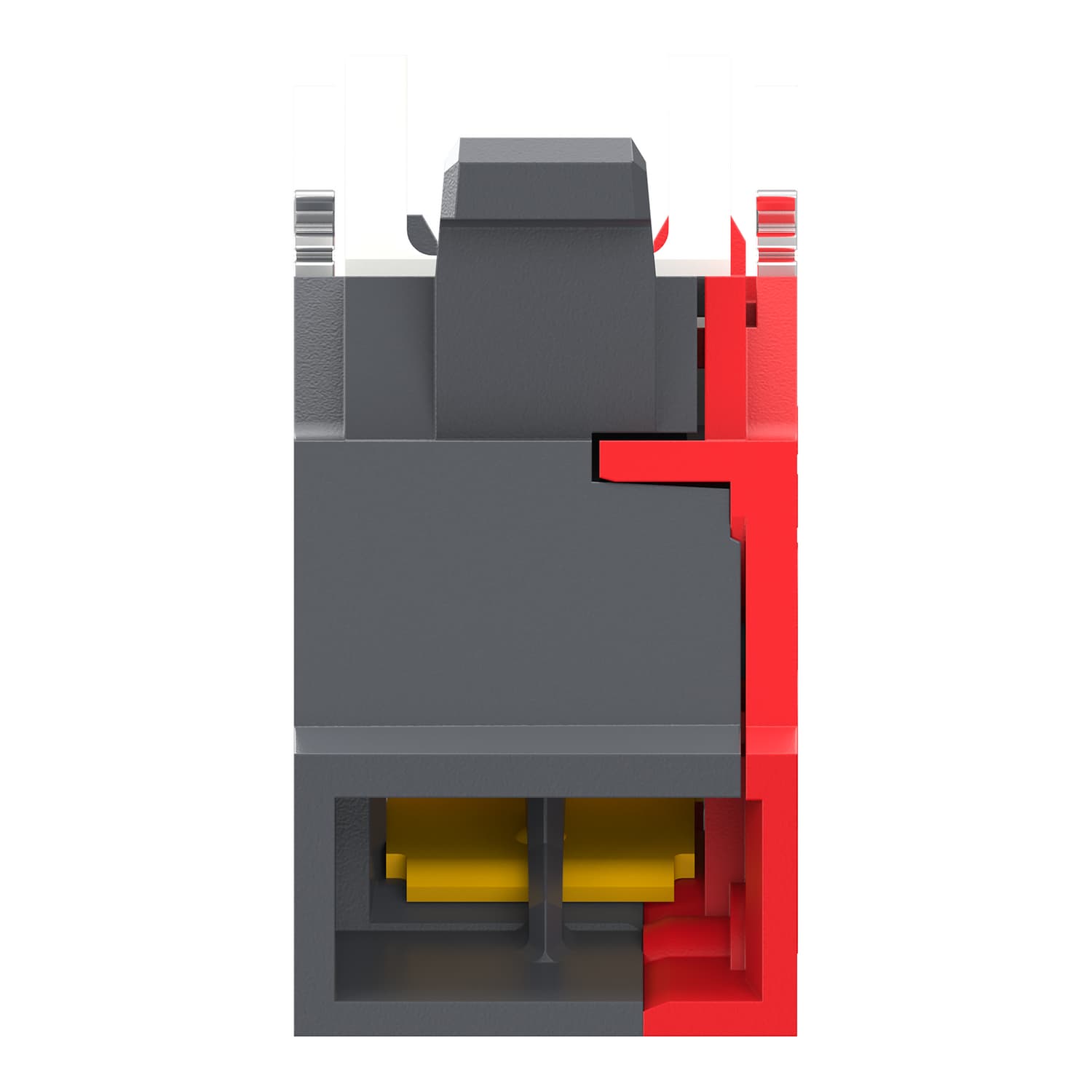

Schneider Electric contact block, rated 6 A. Single contact block, Harmony XB4, Hamony XB5, silver alloy, compact push in terminals, 1 NC.
Single contact block, Harmony XB4, Hamony XB5, silver alloy, compact push in terminals, 1 NC. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony XB5 · Harmony XB4 |
|---|---|
| Product or component type | Contact block |
| Device short name | ZBE |
| Sale per indivisible quantity | 5 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Contact operation | Slow-break |
| Contact block type | Single |
| Contacts usage | Standard contacts |
| Connections - terminals | Push-in, = 1 x 0.34 mm² without wire end ferrule conforming to IEC 60947-1 |
| CAD overall width | 34.3 mm |
| CAD overall height | 14.8 mm |
| CAD overall depth | 9.8 mm |
| Product weight | 0.005 kg |
| Contacts type and composition | 1 NC |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.217 mm (NC changing electrical state) · 4.3 mm (total travel) |
| Operating force | 2.25 N NC changing electrical state |
| Mechanical durability | 10000000 cycles |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 300 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 6 A at 120 V, AC-15, A300 conforming to IEC 60947-5-1 · 3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1 · 0.55 A at 125 V, DC-13, Q300 conforming to IEC 60947-5-1 · 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1 |
| Mounting of block | Front mounting |
| Device presentation | Basic element |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Standards | IEC 60947-1 · IEC 60947-5-1 · IEC 60947-5-4 · IEC 60947-5-5 · UL 60947-1 · UL 60947-5-1 · UL 60947-5-5 · UL 1059 · UL 486E · CSA C22.2 No 60947-1 · CSA C22.2 No 60947-5-1 · CSA C22.2 No 158 · CSA C22.2 No 65 · IACS E10 |
| Product certifications | EAC · IECEE CB Scheme · CCC · UL · CSA |
| Vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 · 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27 · 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 · 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3.400 cm |
| Package 2 Width | 4.500 cm |
| Package 2 Length | 5.300 cm |
| Package 2 Weight | 32.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 500 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.406 kg |
