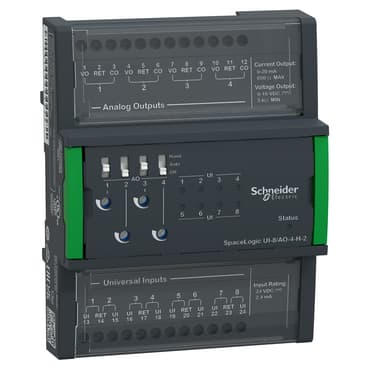

Schneider Electric I/O Modules i/o module. SpaceLogic Central I/O Expansion Module, 8 Universal Inputs, 4 Analog Outputs, Override.
SpaceLogic Central I/O Expansion Module, 8 Universal Inputs, 4 Analog Outputs, Override. Genuine Schneider Electric product supplied by United Force.
| Flame retardance | UL94V0-5VB |
|---|---|
| Width | 90 mm |
| Product certifications | ICES-003 · FCC part 15 class B · CE · RCM · UL |
| Power consumption in W | 3.2 W |
| Product weight | 0.170 kg |
| Product or component type | I/O module |
| Device short name | UI-8/AO-4-H-2 |
| Height | 114 mm |
| Range | SpaceLogic |
| Ambient air temperature for storage | -20…70 °C |
| Depth | 64 mm |
| Ambient air temperature for operation | 0…60 °C |
| IP degree of protection | IP20 |
| [Us] rated supply voltage | 24 V DC |
| Input/output type | universal input |
| Relative humidity | 0…95 % non-condensing |
| Number of outputs | 4 analog output |
| Range of product | SpaceLogic |
| Product name | I/O Modules |
| Product brand | Schneider Electric |
| Switching frequency | 25 Hz |
| Discrete output number | 4 |
| Discrete input number | 8 |
| Mounting support | DIN rail |
| Electrical connection | Plug-in sub-base |
| Control type | With integrated switch for off/on/automatic |
| Product compatibility | Balco · Johnson Control · Continuum · I/NET · Xenta · Satchwell · Honeywell |
| Local signalling | LED (green/red) for high signal level · LED (green/red) for low signal level |
| Range compatibility | SpaceLogic TB-IO-W1-2 terminal base |
| Standards | UL 916 · FCC CFR47 part 15 |
| Material | ABS + PC |
| Analogue input type | Configurable voltage, current or probe 0...20 mA · Configurable voltage, current or probe 0...10 V input voltage · Configurable voltage, current or probe 20 kOhm connection of probes · Configurable voltage, current or probe 10 kOhm connection of probes · Configurable voltage, current or probe 2.2 kOhm connection of probes · Configurable voltage, current or probe 1.8 kOhm connection of probes · Configurable voltage, current or probe 1 kOhm connection of probes · Configurable voltage, current or probe 10 kOhm with shunt |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7.161 kg |
| Warranty (in months) | 18 |
