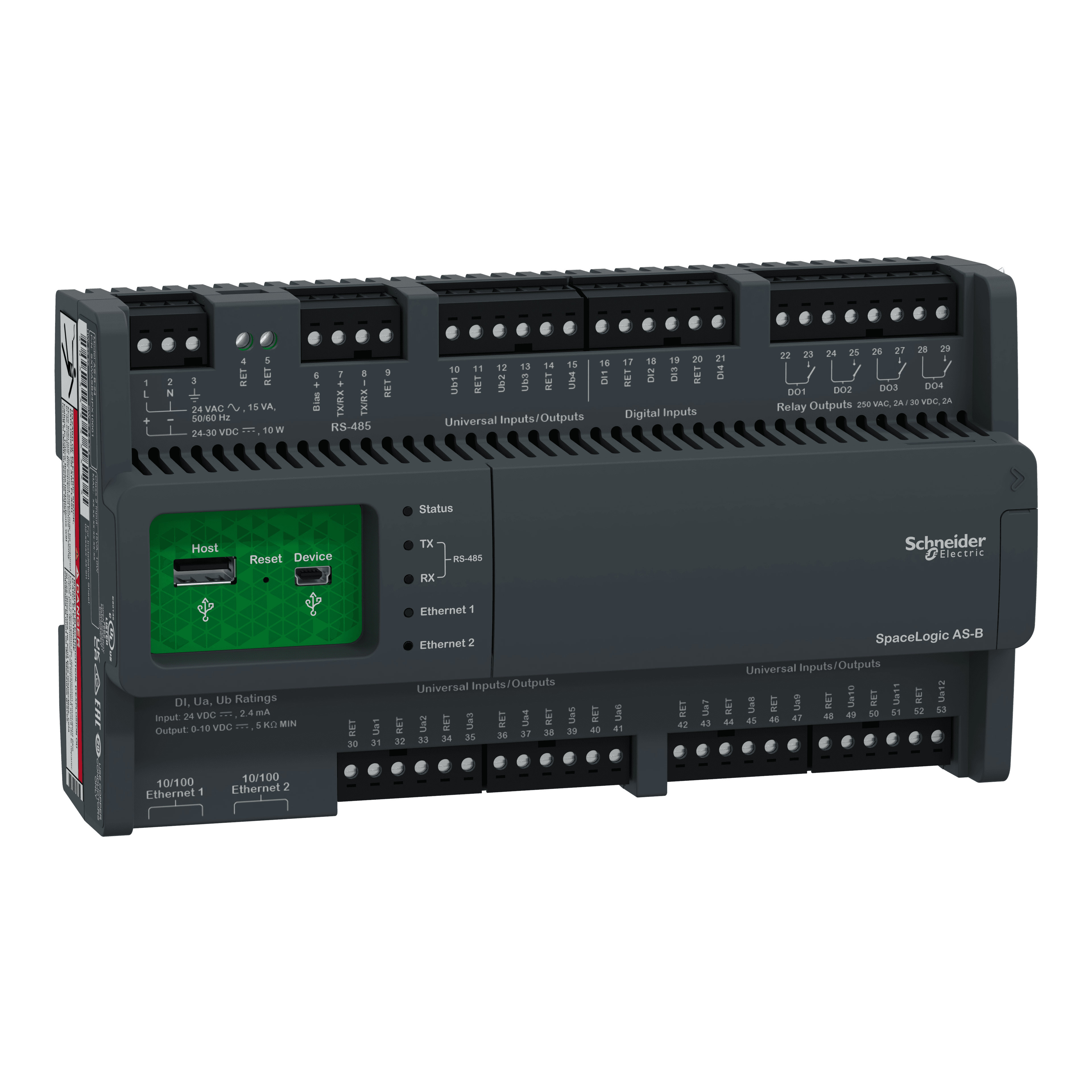

Schneider Electric EcoStruxure Building Operation controller system. SpaceLogic automation server, AS-B-24, 24 I/O points, BACnet, MS/TP, modbus, scalable.
SpaceLogic automation server, AS-B-24, 24 I/O points, BACnet, MS/TP, modbus, scalable. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Communication service | Modbus TCP server · Modbus TCP client · SMTPS e-mail notification · SNMP network management · SMTP e-mail notification |
|---|
| Network frequency | 50 Hz · 60 Hz |
|---|
| Ambient air temperature for storage | -20…70 °C |
|---|
| IP degree of protection | IP20 |
|---|
| Width | 198 mm |
|---|
| Product certifications | ICES-003 · BTL · FCC part 15 class B · cULus · CE · RCM |
|---|
| Power consumption in W | 10 W |
|---|
| Power consumption in VA | 15 VA |
|---|
| Clock drift | +/- 52 s/month |
|---|
| Product or component type | Controller system |
|---|
| Device short name | AS-B-24-P |
|---|
| Display type | FSTN transflective LCD |
|---|
| Display resolution | 128 x 64 pixels |
|---|
| Ambient air temperature for operation | 0…50 °C |
|---|
| Input/output type | 16 universal I/O |
|---|
| Relative humidity | 0…95 % non-condensing |
|---|
| Memory type | 256 MB FRAM · 2 GB flash |
|---|
| [Us] rated supply voltage | 19...29 V AC · 21...33 V DC |
|---|
| Number of inputs | 4 digital |
|---|
| Number of outputs | 4 relay |
|---|
| Height | 114 mm |
|---|
| Product weight | 5.04 kg |
|---|
| Depth | 64 mm |
|---|
| Number of port | 2 ETHERNET |
|---|
| Range | EcoStruxure Building Operation |
|---|
| Switching frequency | 25 Hz |
|---|
| Web services | TLS 1.0 · Programmable scripts : alarm summaries, report management · HTTP server |
|---|
| Mounting support | DIN rail |
|---|
| Product compatibility | Xenta · I/NET · Continuum · Balco · Satchwell · Honeywell · Johnson Control |
|---|
| Product brand | Schneider Electric |
|---|
| Display colour | Monochrome |
|---|
| Analogue input type | Configurable voltage, current or probe 0...20 mA · Configurable voltage, current or probe 0...10 V input voltage · Configurable voltage, current or probe 20 kOhm connection of probes · Configurable voltage, current or probe 10 kOhm connection of probes · Configurable voltage, current or probe 2.2 kOhm connection of probes · Configurable voltage, current or probe 1.8 kOhm connection of probes · Configurable voltage, current or probe 1 kOhm connection of probes · Configurable voltage, current or probe 10 kOhm with shunt |
|---|
| Integrated connection type | USB 2.0 type A · USB type mini B · Ethernet with RJ45 connector · Serial link with RS485 connector |
|---|
| Flame retardance | UL94V0-5VB |
|---|
| Communication port protocol | BACnet · Modbus TCP master RS485 · Modbus TCP slave RS485 · HTTPS RJ45 · HTTP RJ45 |
|---|
| Realtime clock | With |
|---|
| Supply | Power supply: 24 V, <0.5 A |
|---|
| Processor name | Spear 320s |
|---|
| Standards | UL 916 · FCC CFR 47 part 15 |
|---|
| Material | ABS/PC |
|---|
| Electrical connection | plug-in sub-base · terminal with a manual overide switch |
|---|
| Temperature probe type | LG-Ni 1000 - 50...150 °C · Ni 1000 - 50...150 °C · Pt 1000 - 50...150 °C |
|---|
| Warranty (in months) | 18 |
|---|
