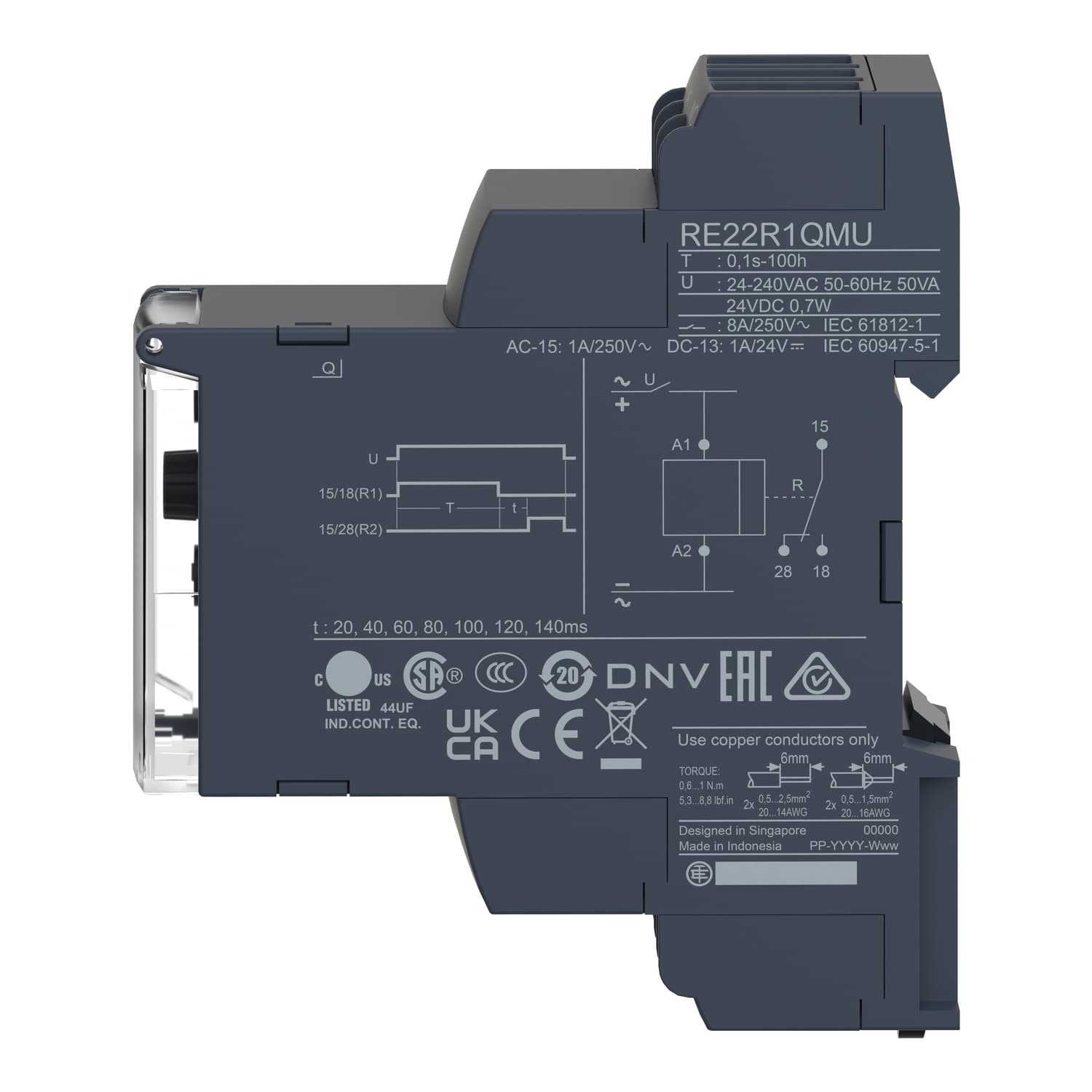

Schneider Electric modular timing relay. single function relay, Harmony Timer Relays, 8A, 1CO, 0.1s…100h, star delta, 24V DC or 24..240V AC DC.
single function relay, Harmony Timer Relays, 8A, 1CO, 0.1s…100h, star delta, 24V DC or 24...240V AC DC. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony Timer Relays |
|---|---|
| Discrete output type | Relay |
| Product or component type | Modular timing relay |
| Device short name | RE22 |
| nominal output current | 8 A |
| Contacts type and composition | 1 C/O timed contact |
| Time delay type | Star-delta |
| Time delay range | 1...10 min · 6...60 s · 0.1...1 s · 1...10 h · 1...10 s · 6...60 min · 10...100 h |
| Control type | Rotary knob front panel |
| [Us] rated supply voltage | 24...240 V AC · 24 V DC |
| Voltage range | 0.85...1.1 Us |
| Supply frequency | 50...60 Hz +/- 5 % |
| Connections - terminals | Screw terminals, 2 x 1.5 mm² with cable end · Screw terminals, 2 x 2.5 mm² without cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Control signal pulse width | 30 ms · 100 ms under load |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Recovery time | 120 ms on de-energisation |
| Immunity to microbreaks | 10 ms |
| Power consumption in VA | 50 VA at 240 V AC |
| Power consumption in W | 0.7 W at 24 V DC |
| breaking capacity | 2000 VA |
| Minimum switching current | 10 mA at 5 V |
| Maximum switching current | 8 mA |
| Maximum switching voltage | 250 V |
| Electrical durability | 100000 cycles for resistive load, 8 A at 250 V, AC |
| Mechanical durability | 10000000 cycles |
| Rated impulse withstand voltage | 5 kV for 1.2…50 µs conforming to IEC 60664-1 · 5 kV conforming to IEC 61812-1 |
| Power on delay | 100 ms |
| Safety reliability data | MTTFd = 182.6 years · B10d = 170000 |
| Mounting position | Any position in relation to normal vertical mounting plane |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Status LED | LED green (flashing) for timing in progress · LED green (steady) for power ON · LED yellow for relay energised |
| Function available | Q-Star-delta relay (2 NO outputs with same common)-1 C/O |
| Width | 22.5 mm |
| Product weight | 0.086 kg |
| Number of functions | 1 |
| Dielectric strength | 2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1 |
| Standards | IEC 61000-6-4 · IEC 61000-6-2 · IEC 61000-6-3 · IEC 61000-6-1 · IEC 61812-1 |
| Directives | 2006/95/EC - low voltage directive · 2004/108/EC - electromagnetic compatibility |
| Product certifications | CSA · EAC · RCM · CE · CCC · GL · cULus |
