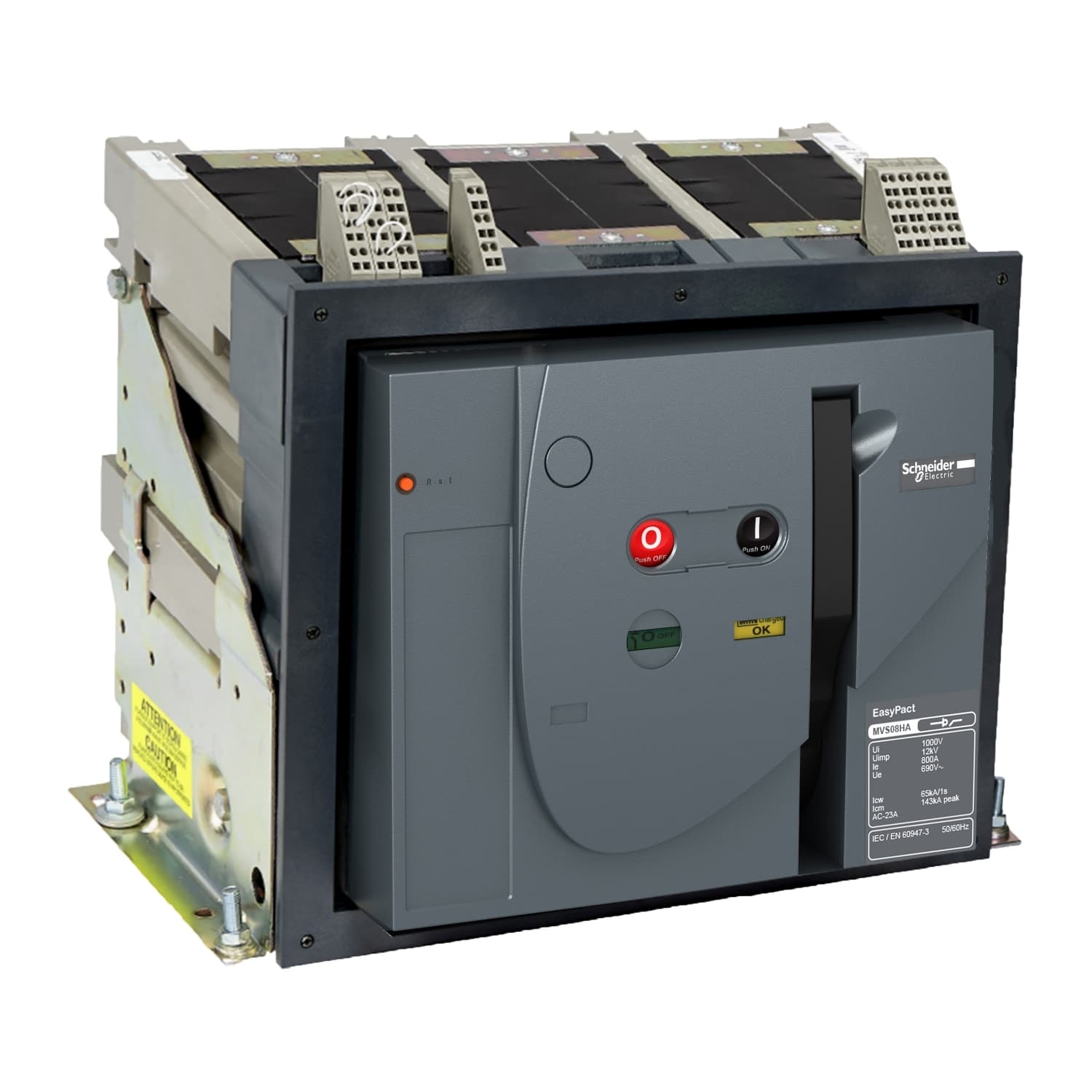

Schneider Electric MVS16HA switch disconnector, rated 23A. switch disconnector, EacyPact MVS, 1600A, 65kA, 3 Poles, EF, 240VAC, W/O, PROT, fixed electrical.
switch disconnector, EacyPact MVS, 1600A, 65kA, 3 Poles, EF, 240VAC, W/O, PROT, fixed electrical. Genuine Schneider Electric product supplied by United Force.
| Range of product | EasyPact MVS |
|---|---|
| Range | EasyPact |
| Product name | MVS16HA |
| Device short name | MVS16HA |
| Product or component type | Switch disconnector |
| Device application | Distribution |
| Poles description | 3P |
| Network type | AC |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | AC-23A |
| Network frequency | 50/60 Hz |
| Control type | Electrically operated |
| Mounting mode | Fixed |
| Mounting support | Base plate · Rail |
| Connection position | Horizontal · Vertical |
| Location of connection | Rear |
| [Ie] rated operational current | AC-23A: 1600 A AC 50/60 Hz 690 V |
| Rated duty | Continuous |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to IEC 60947-3 |
| [Icw] rated short-time withstand current | 66 kA during 1 s conforming to IEC 60947-3 at -5…70 °C · 36 kA during 3 s conforming to IEC 60947-3 at -5…70 °C |
| [Icm] rated short-circuit making capacity | 143 kA AC at 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| Contact position indicator | Yes |
| Mechanical durability | 20000 cycles with maintenance conforming to IEC 60947-3 · 10000 cycles without maintenance conforming to IEC 60947-3 |
| Electrical durability | AC-23A: 6000000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 · AC-23A: 4000000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 |
| Connection pitch | 115 mm without spreader |
| Height | 352 mm |
| Width | 422 mm |
| Depth | 297 mm |
| Product weight | 40 kg |
| Standards | IEC 60947-3 |
| Product certifications | CCS · CCC · GOST · IEC |
| IP degree of protection | IP40 |
| Pollution degree | 4 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -5…70 °C |
| Ambient air temperature for storage | -40…85 °C without control unit |
| Warranty (in months) | 18 |
