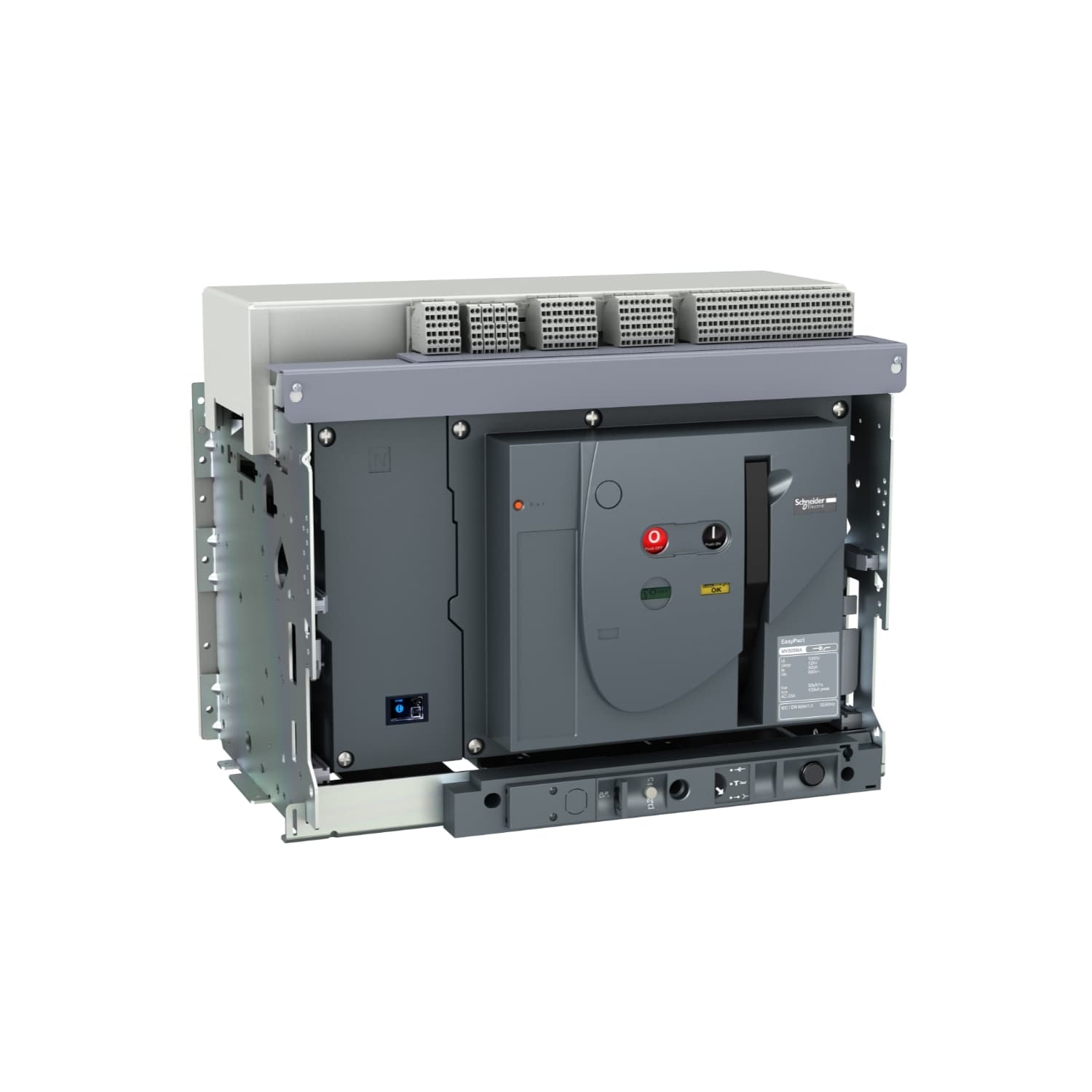

Schneider Electric MVS08NA switch disconnector, rated 23A. switch disconnector, EasyPct MVS, 800A, 50kA, 4P, MDO, W/O, PROT, drawout manual.
switch disconnector, EasyPct MVS, 800A, 50kA, 4P, MDO, W/O, PROT, drawout manual. Genuine Schneider Electric product supplied by United Force.
| Range of product | EasyPact MVS |
|---|---|
| Range | EasyPact |
| Product name | MVS08NA |
| Device short name | MVS08NA |
| Product or component type | Switch disconnector |
| Device application | Distribution |
| Poles description | 4P |
| Neutral position | Left |
| Network type | AC |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | AC-23A |
| Network frequency | 50/60 Hz |
| Control type | Manually operated |
| Mounting mode | Drawout |
| Mounting support | Rail · Base plate |
| Connection position | Vertical · Horizontal |
| Location of connection | Rear |
| [Ie] rated operational current | AC-23A: 800 A AC 50/60 Hz 690 V |
| Rated duty | Continuous |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to IEC 60947-3 |
| [Icw] rated short-time withstand current | 50 kA during 1 s conforming to IEC 60947-3 at -5…70 °C · 25 kA during 3 s conforming to IEC 60947-3 at -5…70 °C |
| [Icm] rated short-circuit making capacity | 105 kA AC at 50/60 Hz |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-3 |
| Contact position indicator | Yes |
| Mechanical durability | 20000 cycles with maintenance conforming to IEC 60947-3 · 10000 cycles without maintenance conforming to IEC 60947-3 |
| Electrical durability | AC-23A: 6000000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 · AC-23A: 4000000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-3 |
| Connection pitch | 115 mm without spreader |
| Height | 439 mm |
| Width | 556 mm |
| Depth | 395 mm |
| Product weight | 85 kg |
| Standards | IEC 60947-3 |
| Product certifications | IEC · GOST · CCC · CCS |
| IP degree of protection | IP40 |
| Pollution degree | 4 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -5…70 °C |
| Ambient air temperature for storage | -40…85 °C without control unit |
| Warranty (in months) | 18 |
