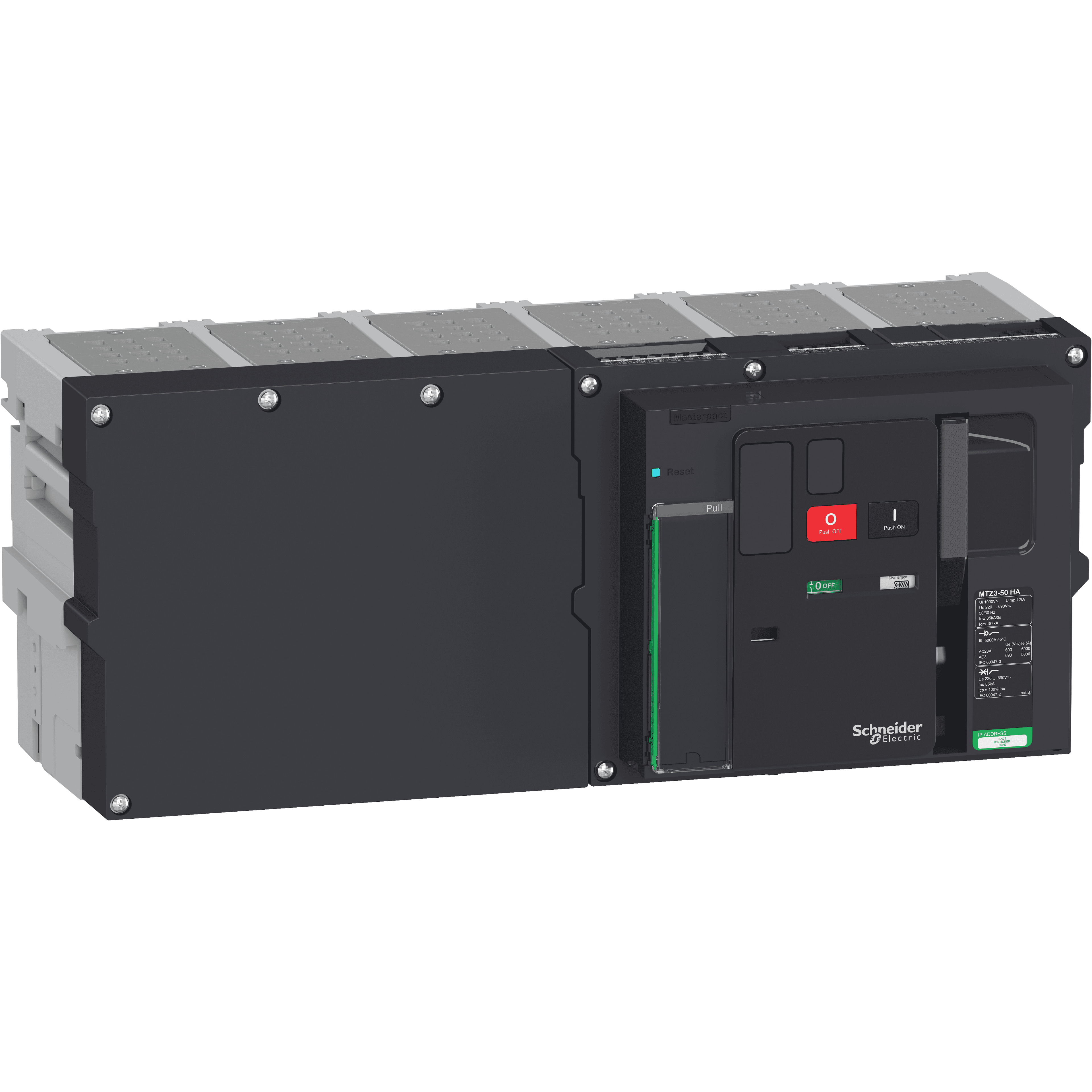

Schneider Electric MasterPact switch disconnector, rated 5000 A. Switch disconnector, MasterPact MTZ3 50HA, 5000A, 187kA/690VAC 50/60Hz (Icm), 3P, drawout.
Switch disconnector, MasterPact MTZ3 50HA, 5000A, 187kA/690VAC 50/60Hz (Icm), 3P, drawout. Genuine Schneider Electric product supplied by United Force.
| Range | MasterPact |
|---|---|
| Product or component type | Switch disconnector |
| Device application | Distribution |
| Switch-disconnector name | MasterPact MTZ3 50 HA |
| Poles description | 3P |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Control type | Push-button |
| Mounting mode | Drawout |
| Mounting support | Chassis |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to EN/IEC 60947-3 |
| [Ie] rated operational current | 5000 A AC 50/60 Hz 690 V |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to EN/IEC 60947-3 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to EN/IEC 60947-3 |
| [Icw] rated short-time withstand current | 85 kA during 1 s conforming to EN/IEC 60947-3 · 85 kA during 3 s conforming to EN/IEC 60947-3 |
| [Icm] rated short-circuit making capacity | 187 kA peak 220...690 V AC at 50/60 Hz |
| Utilisation category | AC-23A · AC-3 |
| Breaking capacity | 85 kA Icu at 220...690 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Ics] rated service breaking capacity | 85 kA at 220...690 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| performance level | HA |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| Contact position indicator | Yes |
| Visible break | No |
| Mechanical durability | 10000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3 |
| Electrical durability | AC-23A: 1500 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3 · AC-23A: 1500 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3 |
| Connection pitch | 230 mm |
| Height | 479 mm |
| Width | 786 mm |
| Depth | 403 mm |
| Product weight | 225 kg |
| Standards | EN/IEC 60947-3 |
| Product certifications | IECEE CB Scheme |
| IP degree of protection | IP30 |
| Pollution degree | 3 conforming to EN/IEC 60947-4-1 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Warranty (in months) | 18 |
