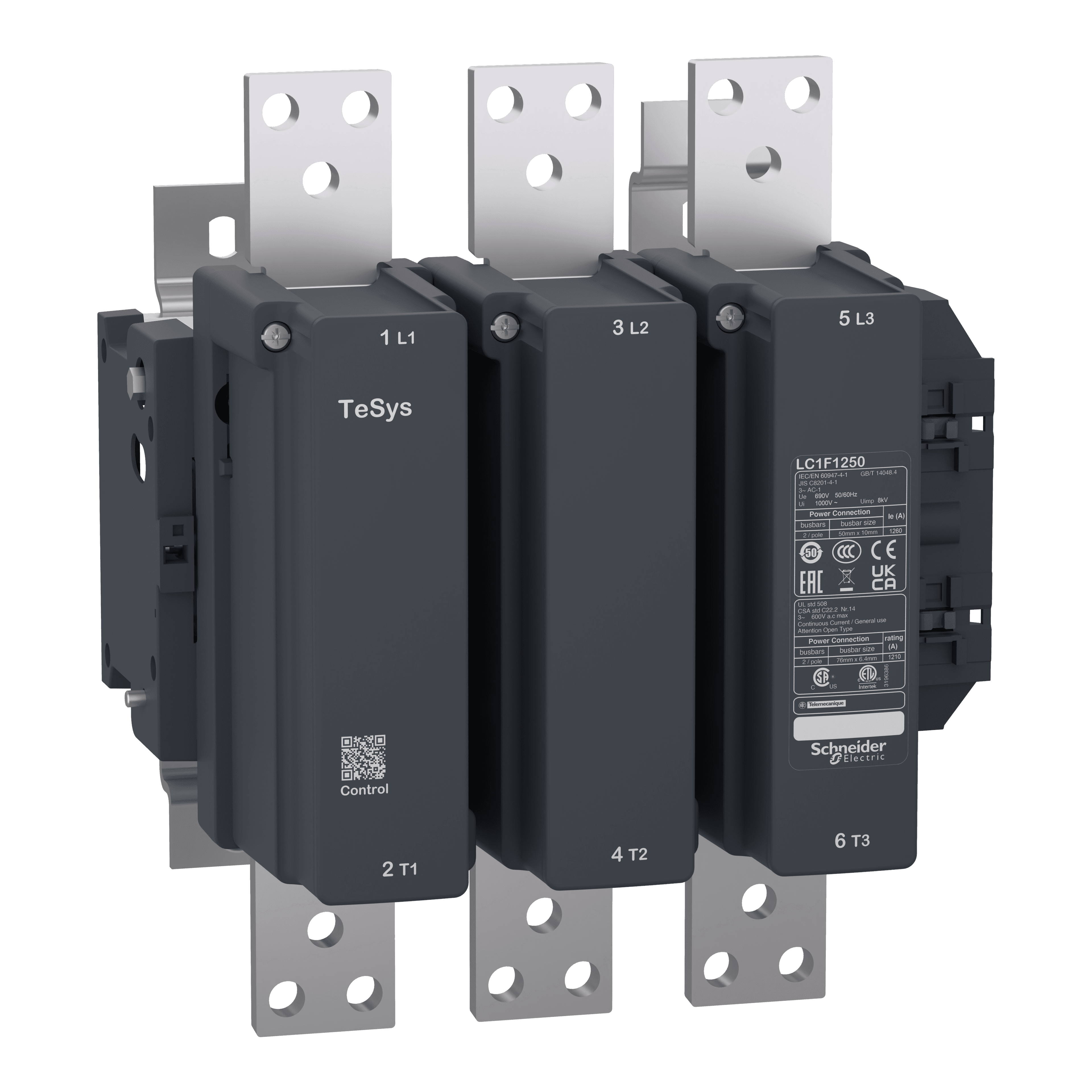

Schneider Electric TeSys contactor, rated 1260 A. Contactor, TeSys F, 3P(3NO), AC-1 <=1000V 1260A, 220V AC coil.
Contactor, TeSys F, 3P(3NO), AC-1 <=1000V 1260A, 220V AC coil. Genuine Schneider Electric product supplied by United Force.
| Range | TeSys |
|---|---|
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| Contactor application | Resistive load |
| Utilisation category | AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 460 V DC · <= 690 V AC 50/60 Hz |
| [Uc] control circuit voltage | 220 V AC 40...400 Hz |
| [Ie] rated operational current | 1260 A (at <40 °C) AC-1 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 1260 A (at 40 °C) |
| Rated breaking capacity | 1890 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 3000 A 40 °C - 3 min · 8000 A 40 °C - 10 s · 5200 A 40 °C - 30 s · 4000 A 40 °C - 1 min · 2000 A 40 °C - 10 min |
| Associated fuse rating | 1000 A gG at <= 440 V |
| Average impedance | 0.12 mOhm - Ith 1260 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 · 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 120 W AC-1 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) · Drop-out: 0.25...0.5 Uc 40...400 Hz (at 55 °C) |
| Inrush power in VA | 1650 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 22 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 1200 cyc/h 55 °C |
| Operating time | 40...80 ms closing · 100...200 ms opening |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end · Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end · Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end · Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end · Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end · Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end · Power circuit: bar 2 cable(s) - busbar cross section: 100 x 5 mm · Power circuit: bolted connection |
| Tightening torque | Control circuit: 1.2 N.m · Power circuit: 58 N.m |
| Mounting support | Plate |
| Heat dissipation | 20 W |
| Standards | EN 60947-4-1 · IEC 60947-4-1 · IEC 60947-1 · EN 60947-1 · JIS C8201-4-1 |
| Product certifications | CB · UL · CSA · CQC · CE · UKCA · CCC |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| Protective treatment | TH |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…60 °C |
| Height | 338 mm |
| Width | 309 mm |
| Depth | 255 mm |
| Operating altitude | 3000 m without derating |
| Product weight | 19 kg |
| Warranty (in months) | 18 |
