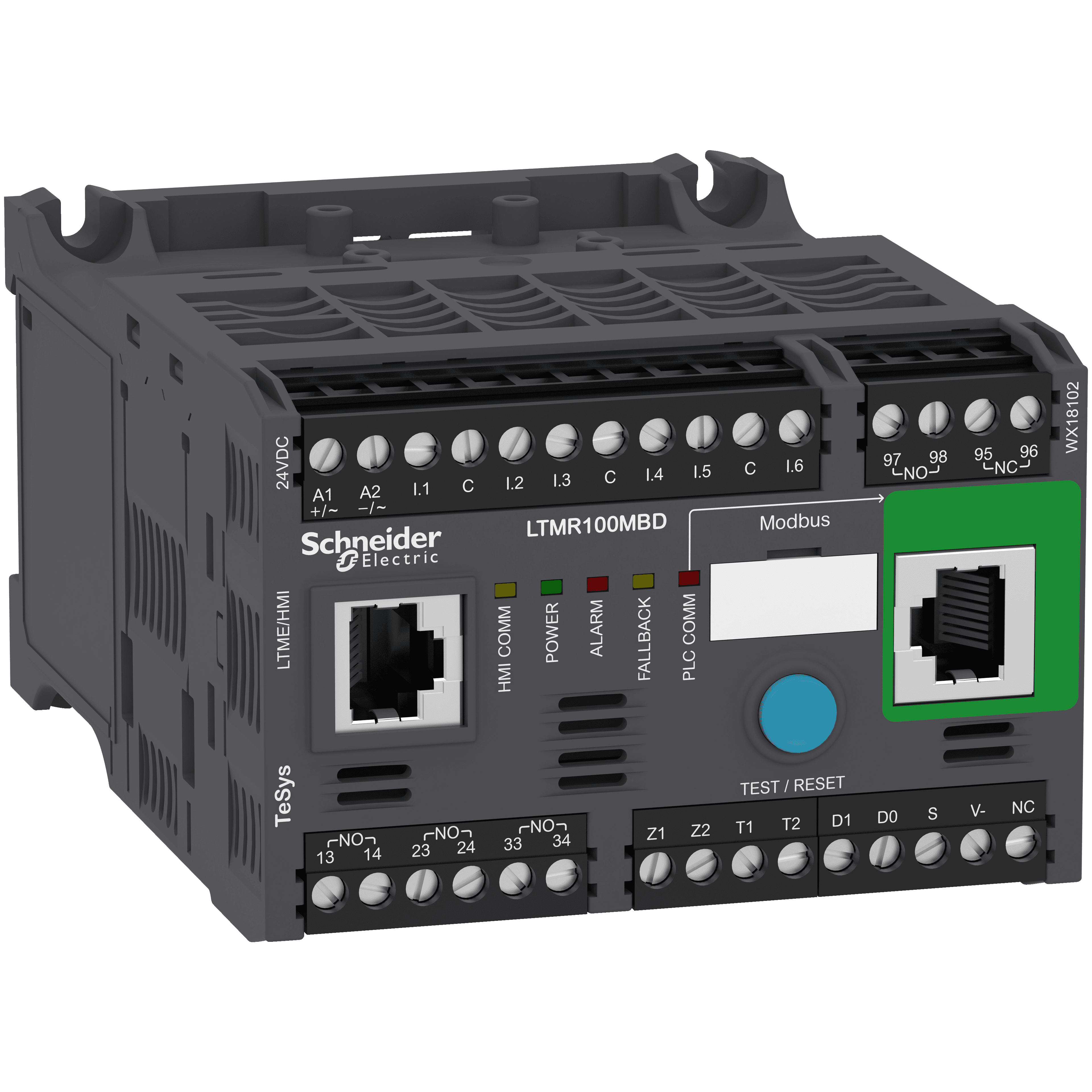

Schneider Electric TeSys T motor controller. Motor Management, TeSys T, motor controller, Modbus, 6 logic inputs, 3 logic outputs, 5 to 100A, 24VDC.
Motor Management, TeSys T, motor controller, Modbus, 6 logic inputs, 3 logic outputs, 5 to 100A, 24VDC. Genuine Schneider Electric product supplied by United Force.
| Range | TeSys |
|---|---|
| Product name | TeSys T |
| Device short name | LTMR |
| Product or component type | Motor controller |
| Device application | Equipment monitoring and control |
| Measurement current | 5…100 A |
| [Us] rated supply voltage | 24 V DC |
| Current consumption | 56...127 mA |
| Supply voltage limits | 20.4…26.24 V DC |
| Communication port protocol | Modbus |
| Bus type | Modbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, RJ45 with 2 shielded twisted pairs · Modbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, terminal block with 2 shielded twisted pairs |
| [Ui] rated insulation voltage | 690 V conforming to EN/IEC 60947-1 · 690 V conforming to CSA C22.2 No 14 · 690 V conforming to UL 508 |
| [Uimp] rated impulse withstand voltage | 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1 · 0.8 kV communication circuit conforming to EN/IEC 60947-4-1 · 0.8 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1 |
| Short-circuit withstand | 100 kA conforming to EN/IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for output · 0.5 A gG for control circuit |
| Protection type | Thermal overload protection · Phase unbalance · Overload (long time) · Phase failure · Thermal protection · Power factor variation · Reverse polarity protection · Overload · Locked rotor · Load fluctuation · Earth-leakage protection |
| Network and machine diagnosis type | Remaining operating time before overload tripping · Phase fault and earth fault trip counters · Fault recording · Waiting time after overload tripping · Motor control command recording · Event recording · Starting current and time · Trip history information · Running hours counter/operating time · Trip context information |
| Logic input number | 6 |
| Input current | 7 mA |
| Current state 0 guaranteed | Logic input: < 5 V and <= 15 mA for 5 ms |
| Current state 1 guaranteed | Logic input: < 15 V and 2...15 mA for 15 ms |
| maximum output switching frequency | 2 Hz |
| Load current | 5 A at 250 V AC for logic output · 5 A at 30 V DC for logic output |
| Permissible power | 480 VA (AC-15), Ie = 2 A, 500000 cycles (output) · 30 W (DC-13), Ie = 1.25 A, 500000 cycles (output) |
| maximum operating rate | 1800 cyc/h |
| Contacts type and composition | 1 NO + 1 NC fault signal · 3 NO |
| Metering type | Phase current I1, I2, I3 RMS · Temperature · Average current Iavg · Earth-fault current · Imbalance current |
| Measurement accuracy | 5...15 % earth fault current internal measurement · 1 % voltage (100...830 V) · 3 % power factor · 5 % earth fault current external measurement · +/- 30 min/year internal clock · 0,02 temperature · 5 % active and reactive power · 0,02 current |
| Overvoltage category | III |
| Connection pitch | 5.08 mm |
| Connections - terminals | Control circuit: connector 1 cable(s) 0.25…2.5 mm² (24 AWG...14 AWG) flexible with cable end · Control circuit: connector 1 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) flexible without cable end · Control circuit: connector 1 cable(s) 0.25…2.5 mm² (24 AWG...14 AWG) flexible without cable end · Control circuit: connector 1 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) solid without cable end · Control circuit: connector 2 cable(s) 0.2…1 mm² (24 AWG...14 AWG) flexible with cable end · Control circuit: connector 2 cable(s) 0.2…1.5 mm² (24 AWG...14 AWG) flexible without cable end · Control circuit: connector 2 cable(s) 0.5…1.5 mm² (24 AWG...14 AWG) flexible without cable end · Control circuit: connector 2 cable(s) 0.2…1 mm² (24 AWG...14 AWG) solid without cable end |
| Tightening torque | Control circuit: 0.5…0.6 N.m flat screwdriver 3 mm |
| Pollution degree | 3 |
| Electromagnetic compatibility | Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 · Radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3 · Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 · Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 · Voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11 · Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 · Temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5 · Temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 · Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 · Control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 · Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 · Relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 · Relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 |
| Width | 91 mm |
| Height | 61 mm |
| Depth | 122.5 mm |
| Product weight | 0.53 kg |
| Web services | Web server |
| Compatibility code | LTMR |
| Standards | IACS E10 · CSA C22.2 No 14 · EN 60947-4-1 · UL 508 · IEC 60947-4-1 |
| Product certifications | NOM · RMRoS · DNV · C-Tick · RINA · CSA · BV · GL · KERI · EAC · LROS (Lloyds register of shipping) · ABS · UL · CCC · ATEX |
| Protective treatment | 12 x 24 hour cycles conforming to EN/IEC 60068-2-30 · 48 h conforming to EN/IEC 60070-2-11 · TH conforming to EN/IEC 60068 |
| Fire resistance | 650 °C conforming to EN/IEC 60695-2-12 · 960 °C conforming to UL 94 |
| Ambient air temperature for operation | -20…60 °C |
