| Range | TeSys |
|---|
| Range of product | TeSys Ultra |
|---|

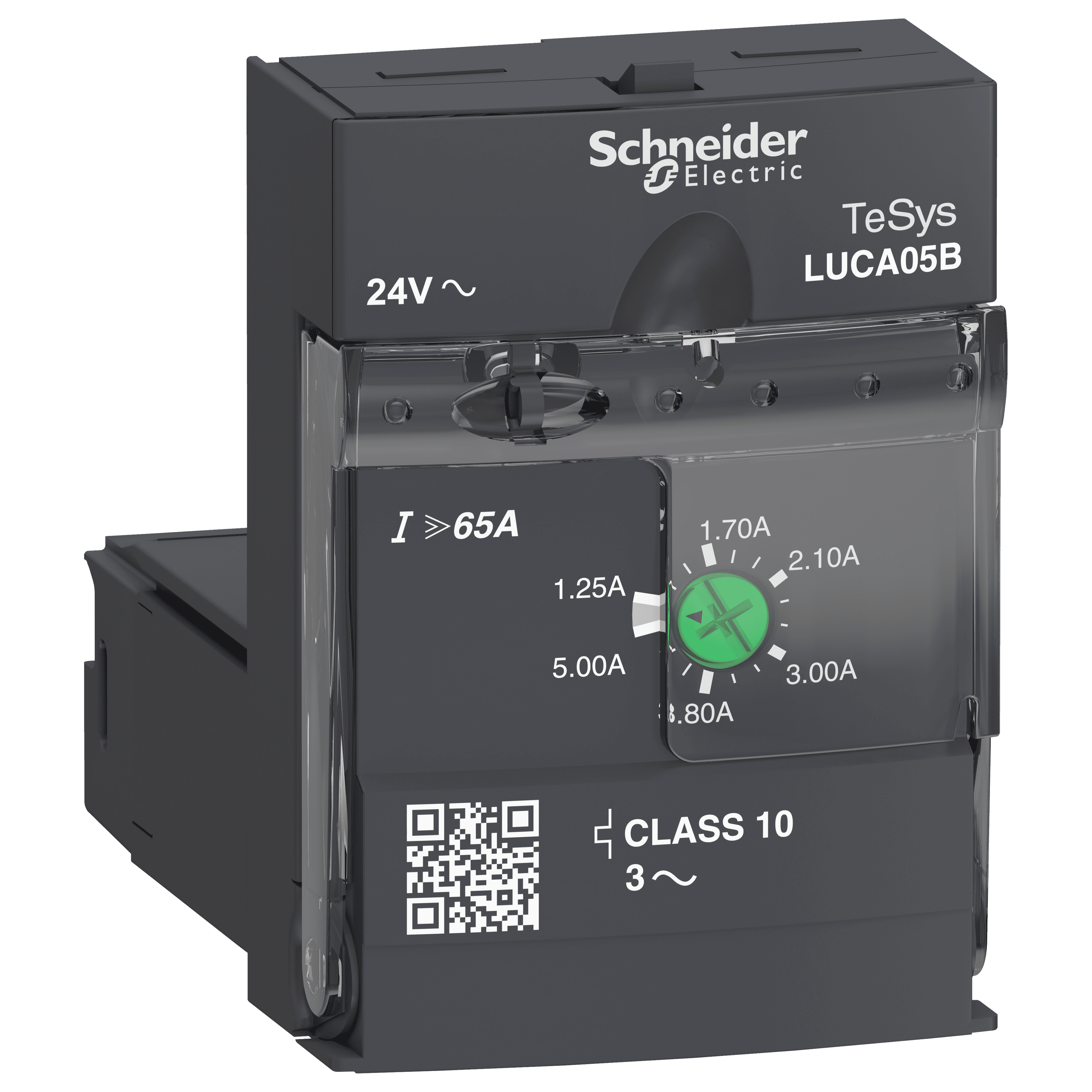

| Product name | TeSys Ultra |
|---|
| Device short name | LUCA |
|---|
| Product or component type | Standard control unit |
|---|
| Device application | Motor control · Motor protection |
|---|
| Product specific application | Basic protection requirements for motor starters: overload and short-circuit |
|---|
| main function available | Manual reset · Protection against overload and short-circuit · Earth fault protection · Protection against phase failure and phase imbalance |
|---|
| Product compatibility | Power base LUB12 · Power base LUB32 · Power base LUB38 · Power base LUB120 · Power base LUB320 · Power base LUB380 · Reversing contactor breaker LU2B12B · Reversing contactor breaker LU2B32B |
|---|
| [Ue] rated operational voltage | 690 V AC |
|---|
| Network frequency | 40...60 Hz |
|---|
| Load type | 3-phase motor - cooling: self-cooled |
|---|
| Utilisation category | AC-43 · AC-41 · AC-44 |
|---|
| Motor power kW | 1.5 kW at 400...440 V AC 50/60 Hz · 2.2 kW at 500 V AC 50/60 Hz · 3 kW at 690 V AC 50/60 Hz |
|---|
| rated motor current adjustment range | 1.25…5 A |
|---|
| Thermal overload class | Class 10 - frequency limit: 40…60 Hz - temperature compensation: -25…70 °C conforming to IEC 60947-6-2 · Class 10 - frequency limit: 40…60 Hz - temperature compensation: -25…70 °C conforming to UL 508 |
|---|
| Tripping threshold | 14.2 x Ir +/- 20 % |
|---|
| Phase failure sensitivity | Yes |
|---|
| [Uc] control circuit voltage | 24 V AC |
|---|
| Control circuit voltage limits | 20...26.5 V for AC circuit 24 V in operation · 14.5 V for AC circuit 24 V drop-out |
|---|
| Typical current consumption | 140 mA at 24 V AC I maximum while closing with LUB12 · 220 mA at 24 V AC I maximum while closing with LUB32 · 220 mA at 24 V AC I maximum while closing with LUB38 · 70 mA at 24 V AC I rms sealed with LUB12 · 90 mA at 24 V AC I rms sealed with LUB32 · 90 mA at 24 V AC I rms sealed with LUB38 |
|---|
| Heat dissipation | 2 W for control circuit with LUB12 · 3 W for control circuit with LUB32 · 3 W for control circuit with LUB38 |
|---|
| Operating time | 35 ms opening with LUB12 for control circuit · 35 ms opening with LUB32 for control circuit · 35 ms opening with LUB38 for control circuit · 70 ms closing with LUB12 for control circuit · 70 ms closing with LUB32 for control circuit · 70 ms closing with LUB38 for control circuit |
|---|
| Standards | EN 60947-6-2 · IEC 60947-6-2 · UL 60947-4-1, with phase barrier · CSA C22.2 No 60947-4-1, with phase barrier |
|---|
| Product certifications | CE · UL · CSA · CCC · EAC · ASEFA · ATEX · Marine |
|---|
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-6-2 · 600 V conforming to UL 60947-4-1 · 600 V conforming to CSA C22.2 No 60947-4-1 |
|---|
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-6-2 |
|---|
| Safe separation of circuit | 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 · 400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1 |
|---|
| Fixing mode | Plug-in (front face) |
|---|
| Width | 45 mm |
|---|
| Height | 66 mm |
|---|
| Depth | 60 mm |
|---|
| Product weight | 0.135 kg |
|---|
| Compatibility code | LUCA |
|---|
| IP degree of protection | IP20 front panel and wired terminals conforming to IEC 60947-1 · IP20 other faces conforming to IEC 60947-1 · IP40 front panel outside connection zone conforming to IEC 60947-1 |
|---|
| Protective treatment | TH conforming to IEC 60068 |
|---|
| Ambient air temperature for operation | -25…70 °C |
|---|
| Ambient air temperature for storage | -40…85 °C |
|---|
| Operating altitude | 2000 m |
|---|
| Fire resistance | 960 °C parts supporting live components conforming to IEC 60695-2-12 · 650 °C conforming to IEC 60695-2-12 |
|---|
| Shock resistance | 10 gn power poles open conforming to IEC 60068-2-27 · 15 gn power poles closed conforming to IEC 60068-2-27 |
|---|
| Vibration resistance | 2 gn, 5…300 Hz, power poles open conforming to IEC 60068-2-6 · 4 gn, 5…300 Hz, power poles closed conforming to IEC 60068-2-6 |
|---|
| Resistance to electrostatic discharge | 8 kV level 3 in open air conforming to IEC 61000-4-2 · 8 kV level 4 on contact conforming to IEC 61000-4-2 |
|---|
| Non-dissipating shock wave | 1 kV serial mode conforming to IEC 60947-6-2 · 2 kV common mode conforming to IEC 60947-6-2 |
|---|
| Resistance to radiated fields | 10 V/m 3 conforming to IEC 61000-4-3 |
|---|
