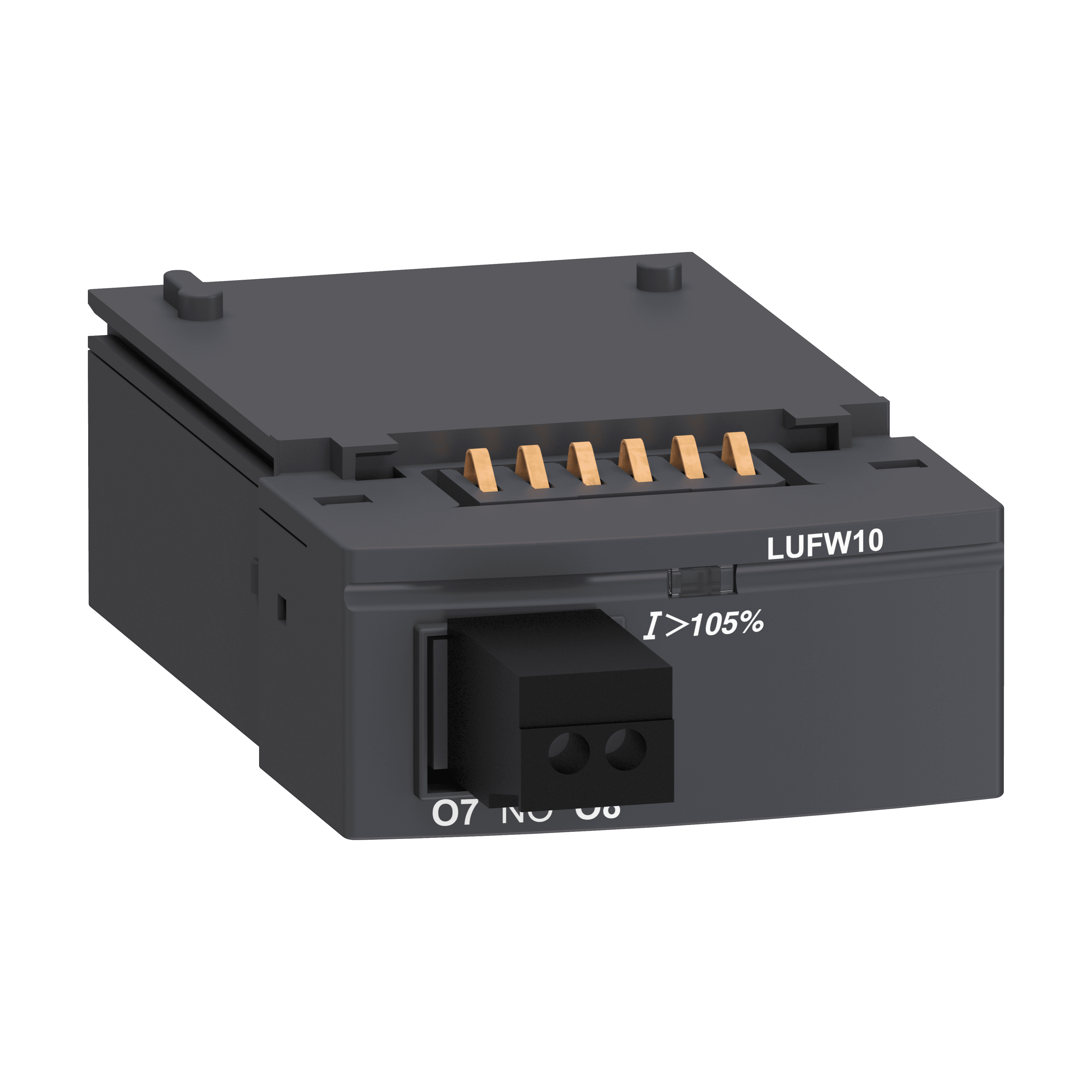

Name: Function module, TeSys Ultra, 1NO, front side, thermal overload alarm
Brand: Schneider Electric
SKU: LUFW10
Price: 889 SAR
Availability: InStock

Function module, TeSys Ultra, 1NO, front side, thermal overload alarm

SKULUFW10

889

Excl. VAT · +15% added at checkout · Bulk pricing from 10+ units

In stock· ships in 2–3 days

Availability

Delivered nationwideOr collect from our branch

Choose delivery or store pickup at checkout.

Min order 1 · sold individually · pack of 1

100% genuine

5-day delivery

7-day returns · 14-day exchange

Secure payment

Schneider Electric TeSys function module, rated 2 A. Function module, TeSys Ultra, 1NO, front side, thermal overload alarm.

Function module, TeSys Ultra, 1NO, front side, thermal overload alarm. Genuine Schneider Electric product supplied by United Force.

Technical specifications

Range	TeSys
Device short name	LUF
Product or component type	Function module
Product compatibility	LUCC · LUCB · LUCD
Mounting mode	Plug-in
Mounting location	Front side
main function available	Thermal overload alarm
Auxiliary contact composition	1 NO
Communication of faults	LED front panel
Discrete output function	1 NO (AC-15) at 230 V - power: 400 VA - electrical service life: 100000 cycles · 1 NO (DC-13) at 24 V - power: 50 W - electrical service life: 100000 cycles
[Ith] conventional free air thermal current	2 A 70 °C
Short-circuit protection	2 A fuse gG conforming to IEC 60947-5-1
Connection pitch	5.08 mm
Connections - terminals	Screw clamp terminals 2 cable(s) 0.2…1 mm² rigid without cable end · Screw clamp terminals 2 cable(s) 0.25…1 mm² flexible with cable end · Screw clamp terminals 2 cable(s) 0.5…1 mm² flexible with cable end · Screw clamp terminals 1 cable(s) 0.2…1.5 mm² flexible without cable end · Screw clamp terminals 1 cable(s) 0.2…1.5 mm² rigid without cable end · Screw clamp terminals 1 cable(s) 0.25…1.5 mm² flexible with cable end · Screw clamp terminals 2 cable(s) 0.2…1 mm² flexible without cable end
Associated cable type	AWG24...AWG16
Tightening torque	0.5…0.6 N.m - with screwdriver 3.5 mm flat
Product weight	0.055 kg
Unit Type of Package 2	S01
Number of Units in Package 2	20
Package 2 Height	15.0 cm
Package 2 Width	15.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	1.306 kg
Warranty (in months)	18

Function module, TeSys Ultra, 1NO, front side, thermal overload alarm. Genuine Schneider Electric product supplied by United Force.
