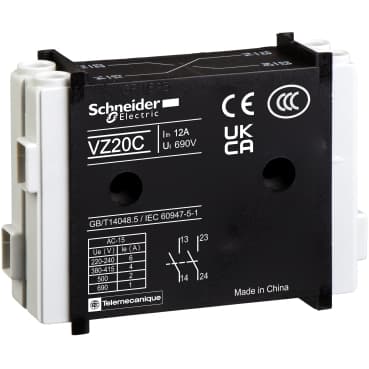

Schneider Electric TeSys auxiliary contact block, rated 12 A. Auxiliary contact block,TeSys Control,1 NO + 1 NO,for V02-V6.
Auxiliary contact block,TeSys Control,1 NO + 1 NO,for V02-V6. Genuine Schneider Electric product supplied by United Force.
| Range | TeSys |
|---|---|
| Device short name | VZ |
| Product or component type | Auxiliary contact block |
| Performance level | High performance |
| Contacts type and composition | 1 NO + 1 NO |
| Product compatibility | V3 · V01 · V2 · V0 · V6 · V4 · V1 · V5 · V02 |
| Network type | DC · AC |
| Network frequency | 50/60 Hz |
| Mounting location | Left · Right |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 12 A |
| [Ithe] conventional enclosed thermal current | 10 A |
| Mechanical durability | 100000 cycles |
| Electrical durability | 30000 cycles DC-11 · 100000 cycles AC-15 |
| Connections - terminals | Screw clamp terminals 2 cable(s) 0.75…1.5 mm² - flexible - with cable end · Screw clamp terminals 2 cable(s) 1…2.5 mm² - solid |
| Tightening torque | 0.7 N.m - on screw clamp terminals |
| Height | 65 mm |
| Width | 20 mm |
| Depth | 48.5 mm |
| Product weight | 0.05 kg |
| Standards | IEC 60947-5 |
| Product certifications | GL · UL · CSA · UKCA |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…50 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 69 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.001 kg |
| Warranty (in months) | 18 |
