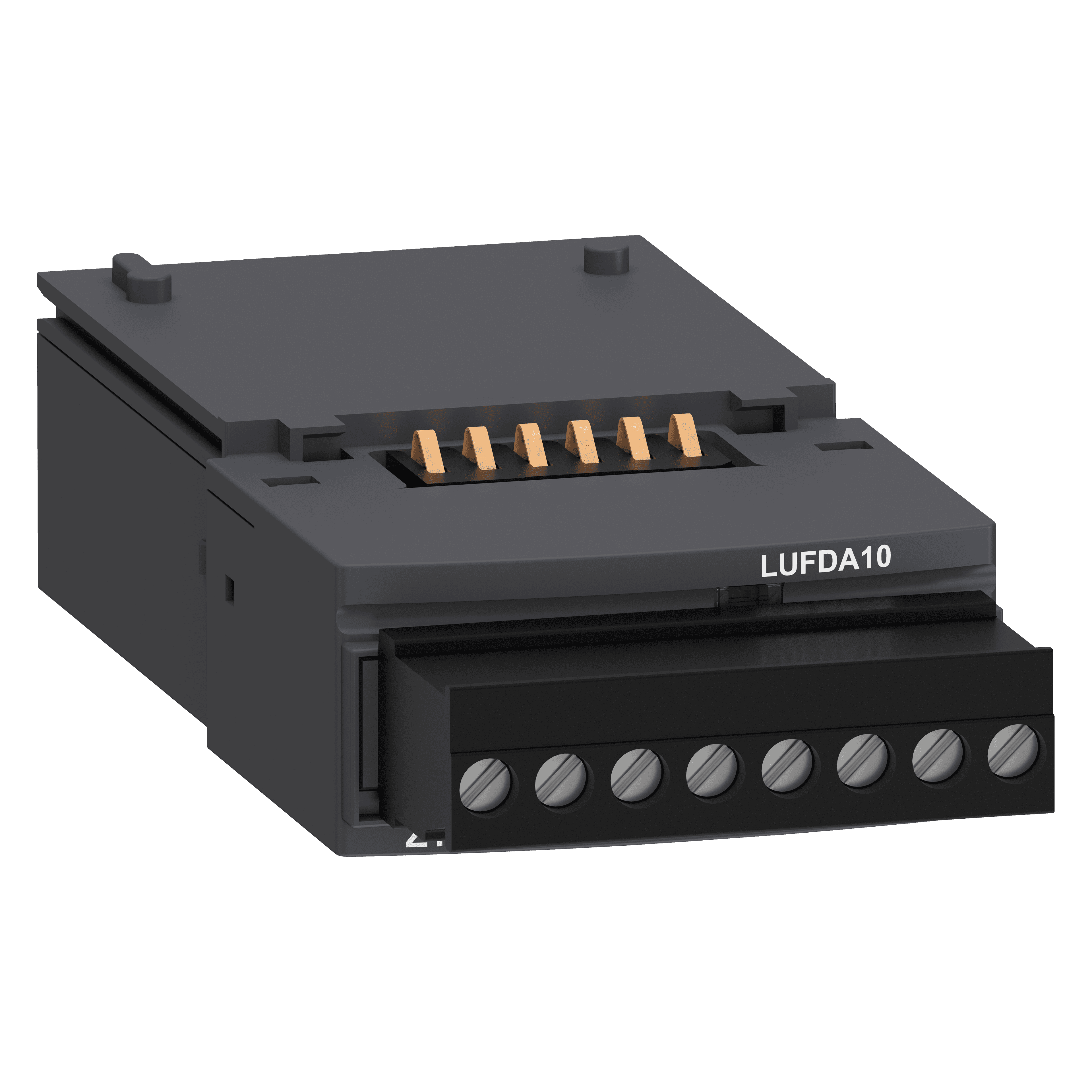

Schneider Electric TeSys function module, rated 2 A. Function module, TeSys Ultra, 1NO, 24 to 240VAC/DC, Front side, thermal overload signalling.
Function module, TeSys Ultra, 1NO, 24 to 240VAC/DC, Front side, thermal overload signalling. Genuine Schneider Electric product supplied by United Force.
| Range | TeSys |
|---|---|
| Device short name | LUF |
| Product or component type | Function module |
| Product compatibility | LUCB...BL · LUCB...ES · LUCB...FU · LUCC...BL · LUCC...ES · LUCC · LUCD...BL · LUCD...ES · LUCD...FU |
| Mounting mode | Plug-in |
| Mounting location | Front side |
| main function available | Thermal overload signalling and automatic or remote reset |
| Auxiliary contact composition | 1 NO |
| Communication of faults | LED front panel |
| [Us] rated supply voltage | 24...240 V DC · 24...240 V AC |
| Current consumption | 7 mA at 24 V DC · 1.1 mA at 240 V AC |
| Discrete output function | 1 NO (AC-15) at 230 V - power: 400 VA - electrical service life: 100000 cycles · 1 NO (DC-13) at 24 V - power: 50 W - electrical service life: 100000 cycles |
| [Ith] conventional free air thermal current | 2 A 70 °C |
| Short-circuit protection | 2 A fuse gG conforming to IEC 60947-5-1 |
| Input type | Remote reset - cable cross section: 0.2…1.5 mm² <500 m - relative impedance: 50 Ohm 52.8 mH - cable capacitance: 0.093 nF |
| Connection pitch | 5.08 mm |
| Connections - terminals | Screw clamp terminals 2 cable(s) 0.2…1 mm² flexible without cable end · Screw clamp terminals 2 cable(s) 0.2…1 mm² rigid without cable end · Screw clamp terminals 2 cable(s) 0.25…1 mm² flexible with cable end · Screw clamp terminals 2 cable(s) 0.5…1 mm² flexible with cable end |
| Tightening torque | 0.5…0.6 N.m - with screwdriver 3.5 mm flat |
| Product weight | 0.055 kg |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 26 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.161 kg |
| Warranty (in months) | 18 |
