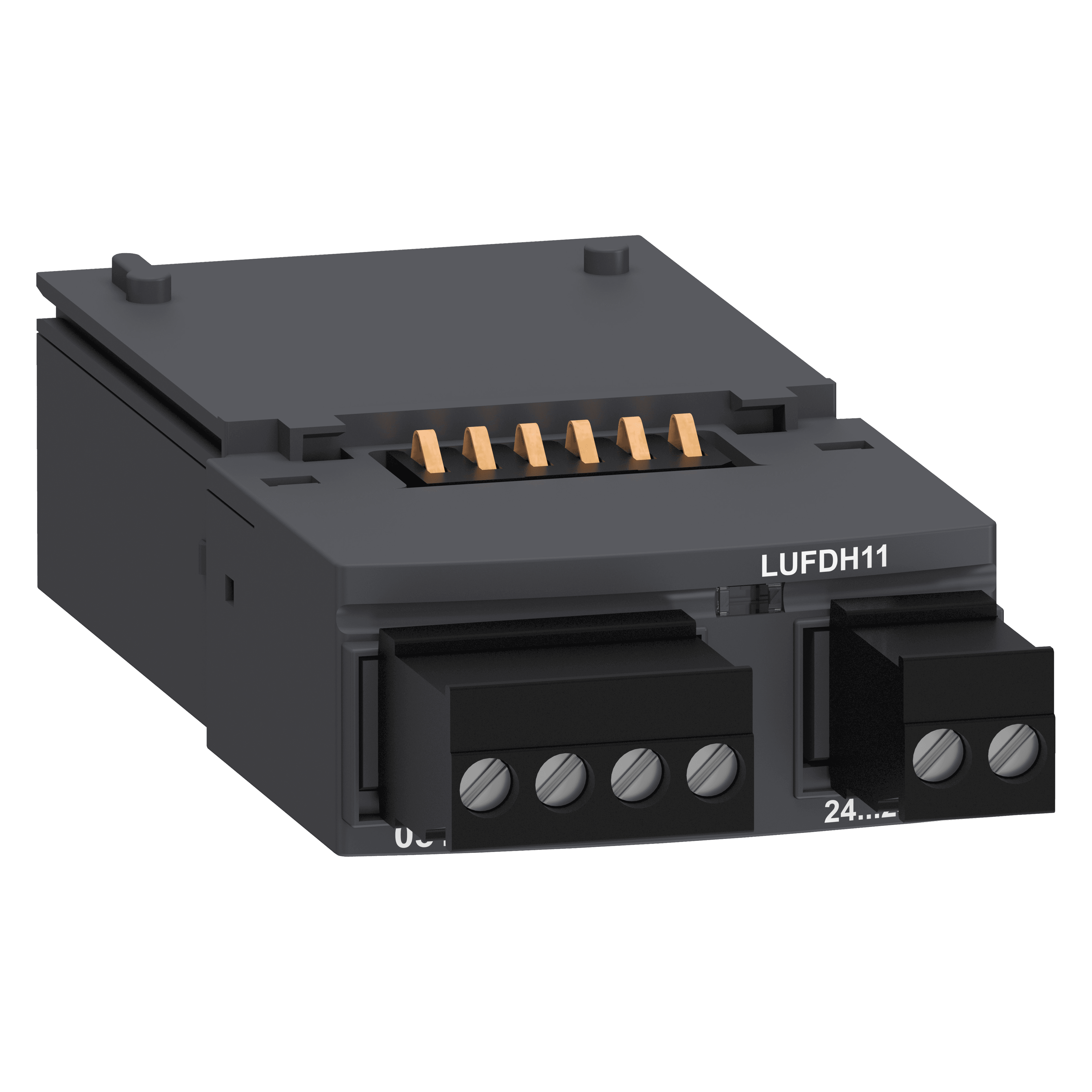

Name: Function module, TeSys Ultra, 1NO+1NC, 24 to 240VAC/DC, Front side, thermal overload signalling
Brand: Schneider Electric
SKU: LUFDH11
Price: 819 SAR
Availability: InStock

Function module, TeSys Ultra, 1NO+1NC, 24 to 240VAC/DC, Front side, thermal overload signalling

SKULUFDH11

819

Excl. VAT · +15% added at checkout · Bulk pricing from 10+ units

In stock· ships in 2–3 days

Availability

Delivered nationwideOr collect from our branch

Choose delivery or store pickup at checkout.

Min order 1 · sold individually · pack of 1

100% genuine

5-day delivery

7-day returns · 14-day exchange

Secure payment

Schneider Electric TeSys function module, rated 2 A. Function module, TeSys Ultra, 1NO+1NC, 24 to 240VAC/DC, Front side, thermal overload signalling.

Function module, TeSys Ultra, 1NO+1NC, 24 to 240VAC/DC, Front side, thermal overload signalling. Genuine Schneider Electric product supplied by United Force.

Technical specifications

Range	TeSys
Device short name	LUF
Product or component type	Function module
Product compatibility	LUCC · LUCB · LUCD
Mounting mode	Plug-in
Mounting location	Front side
main function available	Thermal overload signalling and manual reset
Auxiliary contact composition	1 NO + 1 NC
Communication of faults	LED front panel
[Us] rated supply voltage	24...240 V DC · 24...240 V AC
Current consumption	7 mA at 24 V DC · 1.1 mA at 240 V AC
Discrete output function	1 NO + 1 NC (AC-15) at 230 V - power: 400 VA - electrical service life: 100000 cycles · 1 NO + 1 NC (DC-13) at 24 V - power: 50 W - electrical service life: 100000 cycles
[Ith] conventional free air thermal current	2 A 70 °C
Short-circuit protection	2 A fuse gG conforming to IEC 60947-5-1
Input type	Remote reset - cable cross section: 0.2…1.5 mm² <500 m - relative impedance: 50 Ohm 52.8 mH - cable capacitance: 0.093 nF
Connection pitch	5.08 mm
Connections - terminals	Screw clamp terminals 2 cable(s) 0.2…1 mm² rigid without cable end · Screw clamp terminals 2 cable(s) 0.25…1 mm² flexible with cable end · Screw clamp terminals 2 cable(s) 0.5…1 mm² flexible with cable end
Tightening torque	0.5…0.6 N.m - with screwdriver 3.5 mm flat
Product weight	0.06 kg
Unit Type of Package 2	S01
Number of Units in Package 2	15
Package 2 Height	15.0 cm
Package 2 Width	15.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	1.346 kg
Warranty (in months)	18

Function module, TeSys Ultra, 1NO+1NC, 24 to 240VAC/DC, Front side, thermal overload signalling. Genuine Schneider Electric product supplied by United Force.
