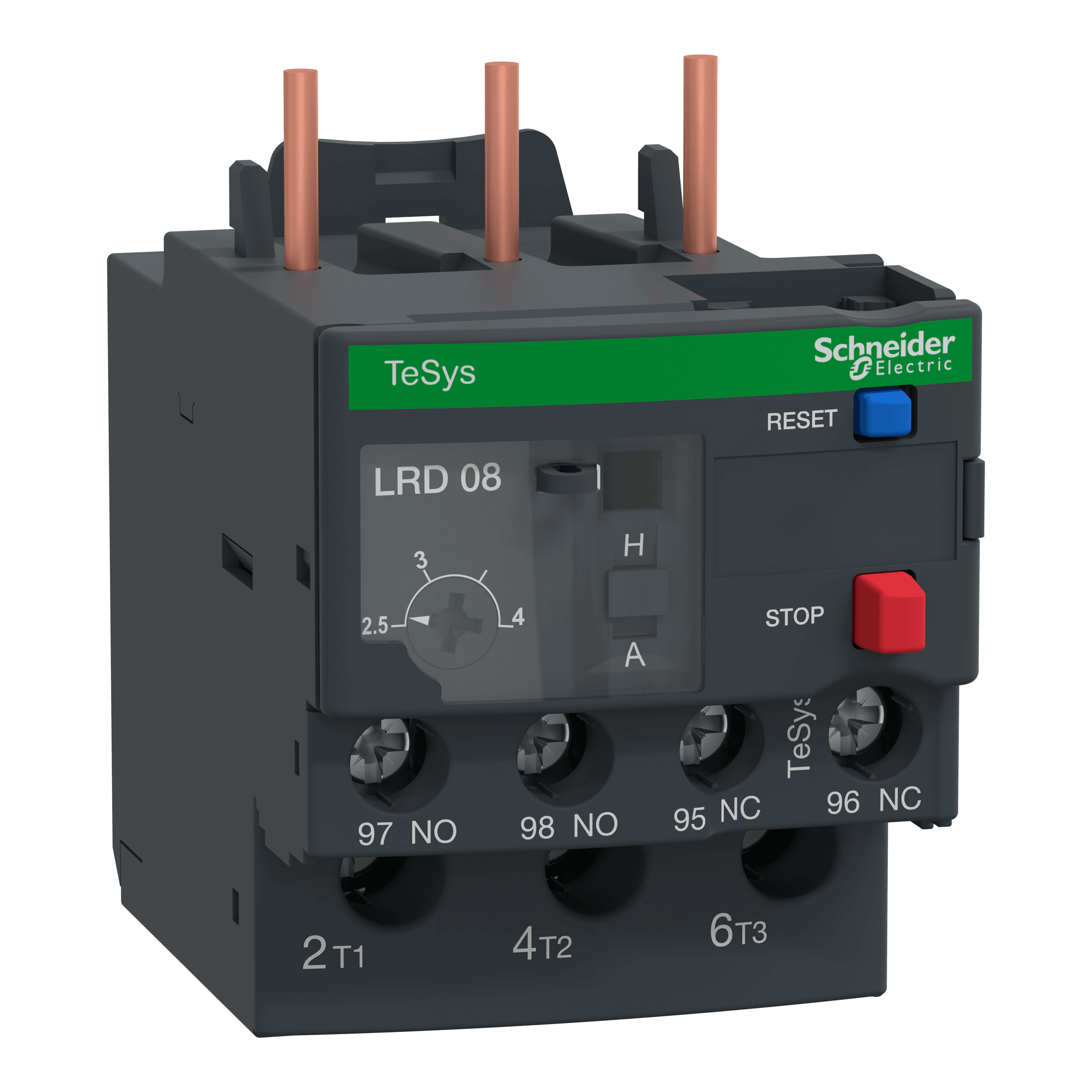

Schneider Electric TeSys LRD · TeSys Deca differential thermal overload relay, rated 5 A. Thermal overload relays, TeSys Deca, 690V, 2.5 to 4A, class 10A, bulk qty.
Thermal overload relays, TeSys Deca, 690V, 2.5 to 4A, class 10A, bulk qty. Genuine Schneider Electric product supplied by United Force.
| Range | TeSys · TeSys Deca |
|---|---|
| Product name | TeSys LRD · TeSys Deca |
| Product or component type | Differential thermal overload relay |
| Device short name | LRD |
| Relay application | Motor protection |
| Product compatibility | LC1D38 · LC1D18 · LC1D25 · LC1D12 · LC1D09 · LC1D32 |
| Network type | AC · DC |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 2.5…4 A |
| [Ui] rated insulation voltage | Power circuit: 600 V conforming to CSA · Power circuit: 600 V conforming to UL · Power circuit: 690 V conforming to IEC 60947-4-1 |
| Network frequency | 0...400 Hz |
| Mounting support | Plate, with specific accessories · Rail, with specific accessories · Under contactor |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| Permissible current | 3 A at 120 V AC-15 for signalling circuit · 0.22 A at 125 V DC-13 for signalling circuit |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit · 4 A BS for signalling circuit |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Phase failure sensitivity | Tripping current I 30 % of Ir on one phase, the others at Ir conforming to IEC 60947-4-1 |
| Control type | Red push-button: stop · Blue push-button: reset |
| Temperature compensation | -20…60 °C |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals · Power circuit: 1.7 N.m - on screw clamp terminals |
| Height | 66 mm |
| Width | 45 mm |
| Depth | 70 mm |
| Product weight | 0.124 kg |
| Quantity per set | Set of 10 |
| Climatic withstand | conforming to IACS E10 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -60…70 °C |
| Dielectric strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Standards | EN/IEC 60947-4-1 · EN/IEC 60947-5-1 · UL 60947-4-1 · UL 60947-5-1 · CSA C22.2 No 60947-4-1 · CSA C22.2 No 60947-5-1 · GB/T 14048.4 · GB/T 14048.5 · EN 50495 |
| Product certifications | IEC · UL · CSA · CCC · EAC · BV · RINA · DNV-GL · LROS (Lloyds register of shipping) · ATEX INERIS · UKCA |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 8.159 kg |
| Warranty (in months) | 18 |
