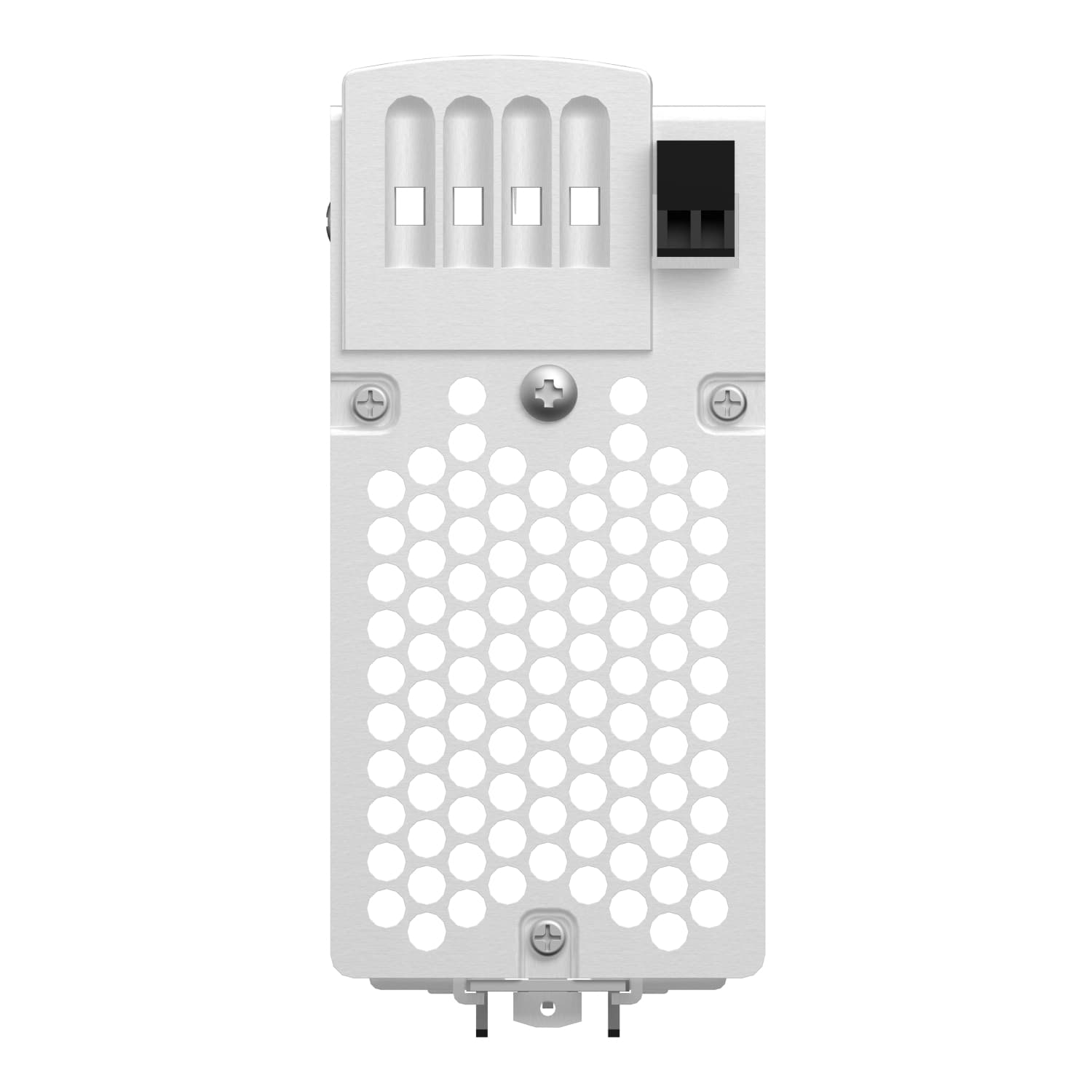

Schneider Electric power supply. Regulated switch power supply, modicon power supply, 1 or 2 phase, 100 to 500V, 24V, 5A.
Regulated switch power supply, modicon power supply, 1 or 2 phase, 100 to 500V, 24V, 5A. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon Power Supply |
|---|---|
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...120 V AC single phase, terminal(s): N-L1 · 200...500 V AC phase to phase, terminal(s): L1-L2 |
| Rated power in W | 120 W |
| Output voltage | 24 V DC |
| Power supply output current | 5 A |
| Permissible temporary current boost | 1.5 x In (for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
| Input voltage limits | 85...132 V AC · 170...550 V AC |
| Inrush current | 30 A |
| Power factor | 0.51 at 240 V AC · 0.59 at 120 V AC |
| Efficiency | 87 % |
| Output voltage adjustment | 24...28.8 V adjustable |
| Power dissipation in W | 15.5 W |
| Provided equipment | Power factor correction filter conforming to IEC 61000-3-2 |
| Output protection type | Against overload, protection technology: manual or automatic reset · Against overvoltage, protection technology: 30...32 V, manual reset · Against short-circuits, protection technology: manual or automatic reset · Against undervoltage, protection technology: tripping if U < 21.6 V · Thermal, protection technology: automatic reset |
| Connections - terminals | Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay · Screw type terminals: 3 x 0.5...3 x 4 mm², (22 AWG...12 AWG) for input connection · Screw type terminals: 1 x 0.5...1 x 4 mm², (22 AWG...12 AWG) for input ground connection · Screw type terminals: 4 x 0.5...4 x 4 mm², (22 AWG...12 AWG) for output connection · Screw type terminals: 1 x 0.5...1 x 4 mm², (22 AWG...12 AWG) for output ground connection |
| Status LED | 1 LED (green and red) output voltage · 1 LED (green, red and orange) output current |
| Depth | 125 mm |
| Height | 143 mm |
| Width | 56 mm |
| Product weight | 0.7 kg |
| Output coupling | Parallel · Series |
| Marking | CE |
| Mounting support | 35 x 15 mm symmetrical DIN rail · 35 x 7.5 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV conforming to IEC 60950-1 · SELV conforming to IEC 60204-1 · SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 3500 V with between input and ground · 4000 V with between input and output · 500 V with between output and ground |
| Standards | CSA C22.2 No 60950-1 · UL 508 · EN/IEC 62368-1 |
| Product certifications | CCSAus · EAC · KC · RCM · UL |
| Environmental characteristic | EMC conforming to IEC 61000-6-1 · EMC conforming to IEC 61000-6-3 · EMC conforming to EN 55024 · EMC conforming to IEC 61000-6-4 · EMC conforming to EN/IEC 61204-3 · Safety conforming to IEC 60950-1 · Safety conforming to EN/IEC 61204-3 |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | 50…60 °C with derating factor mounting position A < 2000 m · -25…50 °C without derating mounting position A < 2000 m |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 105 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 109.600 kg |
| Warranty (in months) | 18 |
