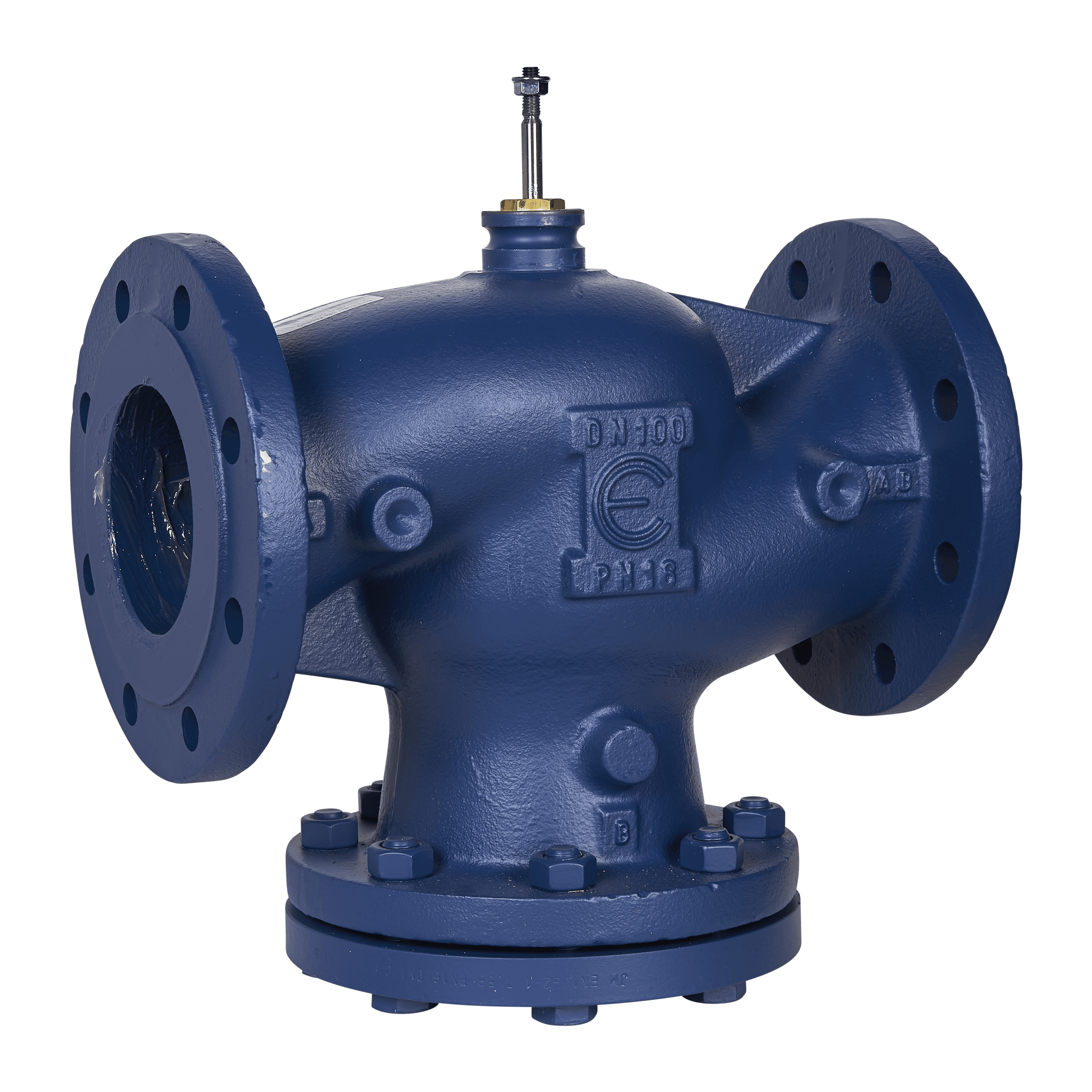

Schneider Electric valve. VG221F Globe Valve, 2-Way, DN100, Kvs 130 m³/h, ISO Flanged, Brass Plug, EPDM Seals, Stem Up Closed.
VG221F Globe Valve, 2-Way, DN100, Kvs 130 m³/h, ISO Flanged, Brass Plug, EPDM Seals, Stem Up Closed.. Genuine Schneider Electric product supplied by United Force.
| Product or component type | Valve |
|---|---|
| Valve type | Globe |
| Valve product series | VG221F |
| Valve model | VG221F-100C 130M SU00 |
| Medium compatibility | Water · Glycol 25 % · Glycol 30 % · Glycol 50 % |
| Valve configuration | 2-Way |
| Valve connection type | Flanged |
| Valve connection size | DN100 (ISO 7005-2) |
| Body size | 100 mm (4 in) |
| Pipe size | 100 mm |
| Flow characteristic | Equal percentage |
| Flow coefficient | 150.31 cv · 130 kvs |
| Pressure class | PN16 |
| Operating fluid temperature | -10…150 °C |
| Pressure fluid max delta P normal life | 199.9 kPa |
| Control valve rangeability | Greater than 50:1 |
| Stroke length | 45 mm |
| Seat leakage | Port A: Less than 0.03 % of kvs |
| Stem flow action | Stem up closed |
| Stem movement | Linear |
| Trim material | Brass |
| Body material | Grey cast iron GG-25 |
| Seat material | Port A: grey cast iron GG-25 |
| Stem material | Stainless steel AISI 303 |
| Plug material | CW614N brass |
| Stem seal material | EPDM (ethylene propylene diene monomer) |
| Seating seal material | Port A:metal to metal |
| Packing material | EPDM (ethylene propylene diene monomer) |
| Targeted region | Europe · Asia Pacific. · Australia. |
| Warranty (in months) | 18 |
