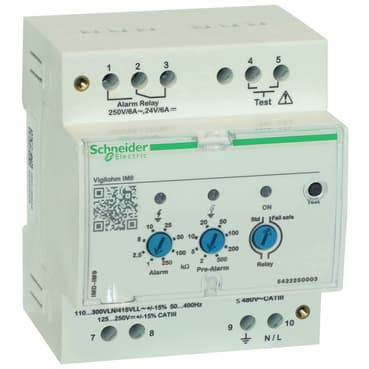

Schneider Electric Vigilohm insulation monitoring device. VIGILOHM IM9 110 - 415 VAC.
VIGILOHM IM9 110 - 415 VAC. Genuine Schneider Electric product supplied by United Force.
| Range | Vigilohm |
|---|---|
| Device short name | IM9 |
| Product or component type | Insulation monitoring device |
| Type of IMD | AC IMD |
| Earthing system | IT · HRG |
| Application | Marine and offshore · Industry · Infrastructure · Power generation · Port, airport, railway |
| Network size | Small |
| Electrical circuit type | Control circuit |
| Network capacitance | Very lightly capacitive |
| Type of network | 1P + N · 3P · 3P + N |
| Network rated voltage | 0…600 V - AC at 45...440 Hz (device connected to neutral) · 0…480 V - AC at 45...440 Hz (device connected to phase) |
| Alarm threshold setting | Pre-alarm: 2...500 kOhm · Alarm: 1...250 kOhm |
| Type of measurement | Network insulation resistance, range: 1000 Ohm...500 kOhm, accuracy: +/- 15 % |
| Configurable filtering time | 7 s |
| Response time | <= 7 s 100 % |
| Self-test | Manual |
| Overvoltage category | III |
| IP degree of protection | Case: IP20 · Front face: IP40 |
| Material | Thermoplastic |
| Type of installation | Indoor |
| Operating altitude | <= 3000 m |
| Relative humidity | 0…92 % |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Pollution degree | 2 |
| Mounting mode | Clip-on (DIN rail) · Flush-mounted (panel) |
| Mounting position | Horizontal · Vertical |
| Connections - terminals | Tunnel type terminals 0.2…2.5 mm² |
| Product weight | 0.2 kg |
| Cut-out dimensions | 66 x 72.5 mm |
| Height | 90 mm |
| Width | 71 mm |
| Depth | 67.5 mm |
| Display type | Without display |
| Signal contacts composition | 1 C/O standard or fail-safe |
| Signalling circuit voltage | 250 V - AC at 6 A · 12...24 V - DC at 6 A |
| Communication port protocol | - |
| Communication of data | HMI: test reports · Dry contact: test reports |
| [Us] rated supply voltage | 110...415 V AC 50/60/400 Hz tolerance: +/- 15 % · 125...250 V DC tolerance: +/- 15 % |
| Power consumption in VA | 7 VA |
| Power consumption in W | 3 W |
| Overcurrent protection | 1 A |
| Standards | IEC 61557-8 · UL 61010-1 · IEC 61010-1 · IEC 61326-2-4 |
| Product certifications | EAC · CE · BV · RMRS · DNV · RCM · EU-RO MR TA |
| Environmental characteristic | Exposure to damp heat not in service conforming to IEC 60068-2-30 · Exposure to damp heat in service conforming to IEC 60068-2-56 · Salt mist conforming to IEC 60068-2-52 · Long-term storage class 1K22 conforming to IEC 60721-3-1 · Transport class 2K11 conforming to IEC 60721-3-2 · Stationary use at weather protected locations class 3K24 conforming to IEC 60721-3-3 |
