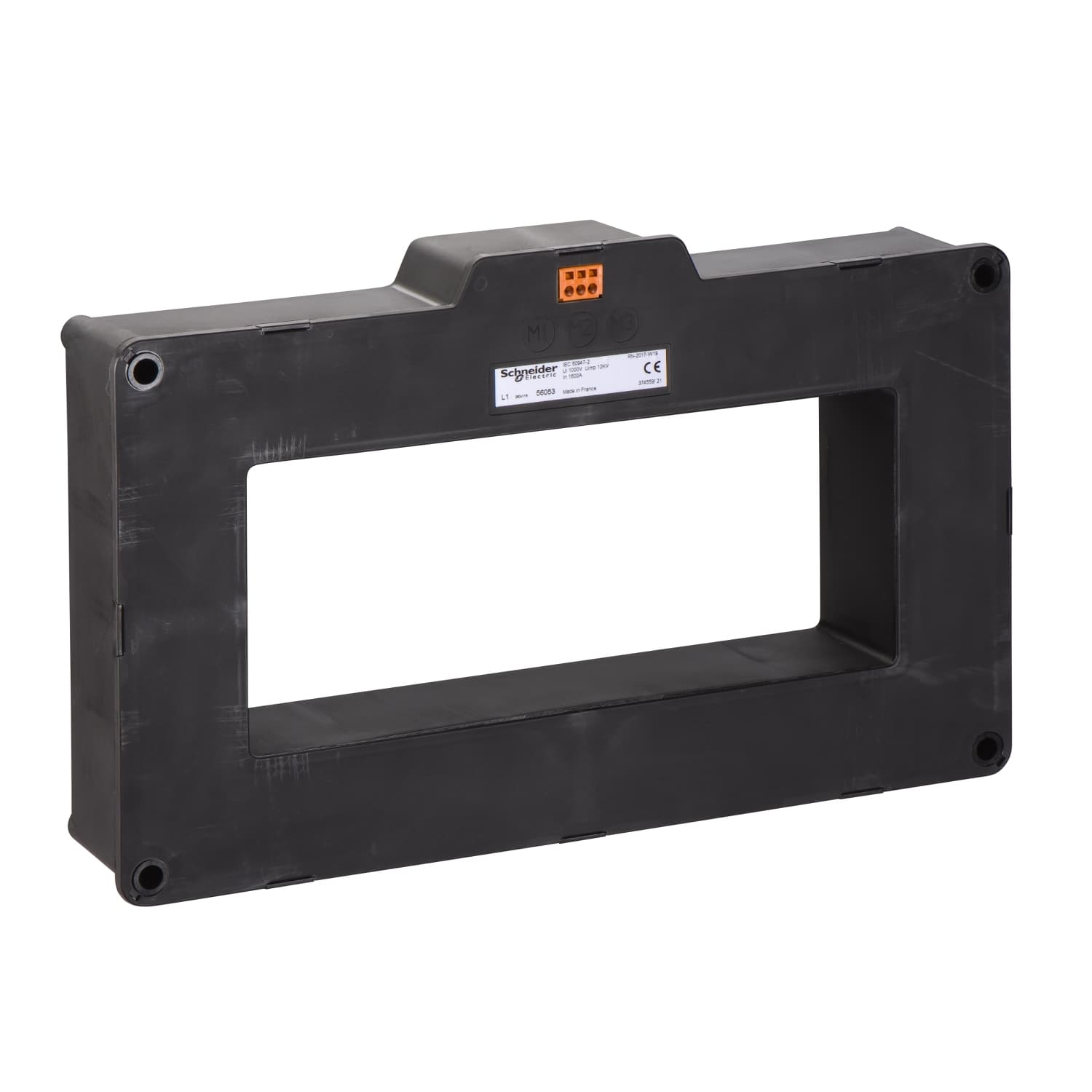

Schneider Electric VigiPacT earth leakage current sensor, rated 1600 A. Rectangular sensor L1 type, VigiPacT, 280mmx115mm, 1600A.
Rectangular sensor L1 type, VigiPacT, 280mmx115mm, 1600A. Genuine Schneider Electric product supplied by United Force.
| Range | VigiPacT |
|---|---|
| Device short name | L |
| Product or component type | Earth leakage current sensor |
| Device application | Equipment monitoring and control |
| Range compatibility | VigiPacT RH10M residual current protection relay · VigiPacT RH10P residual current protection relay · VigiPacT RH21M residual current protection relay · VigiPacT RH21P residual current protection relay · VigiPacT RH68M residual current protection relay · VigiPacT RH86M residual current protection relay · VigiPacT RH86P residual current protection relay · VigiPacT RH99M residual current protection relay · VigiPacT RH99P residual current protection relay · VigiPacT RH197M residual current protection relay · VigiPacT RH197P residual current protection relay · VigiPacT RHU residual current protection relay · VigiPacT RHUs residual current protection relay · VigiPacT RMH residual current protection relay |
| current sensor type | Rectangular sensor |
| [Ie] rated operational current | 1600 A |
| Transformer ratio | 1/1000 |
| Network frequency | 50/60 Hz · 400 Hz |
| [Icw] rated short-time withstand current | 100 kA for 0.5 s |
| Residual short-circuit withstand current | 85 kA / 0.5 s |
| [Ui] rated insulation voltage | 1000 V |
| Overvoltage category | IV |
| [Uimp] rated impulse withstand voltage | 12 kV |
| Mounting mode | Fixed (cables) · Fixed (busbar) |
| Connections - terminals | Screw connection 0.5…2.5 mm² |
| Product weight | 11 kg |
| Height | Outside: 233 mm · Inside: 115 mm |
| Width | Outside: 388 mm · Inside: 280 mm |
| Depth | 72 mm |
| IP degree of protection | Body: IP30 · Connectors: IP20 |
| Environmental characteristic | Exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56 · Exposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30 · Salt mist: Kb/2 conforming to IEC 60068-2-52 |
| Pollution degree | Level 3 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -35…80 °C |
| Ambient air temperature for storage | -55…100 °C |
| Standards | IEC 60947-2 |
| Product certifications | CE |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 67.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 187.860 kg |
| Warranty (in months) | 18 |
