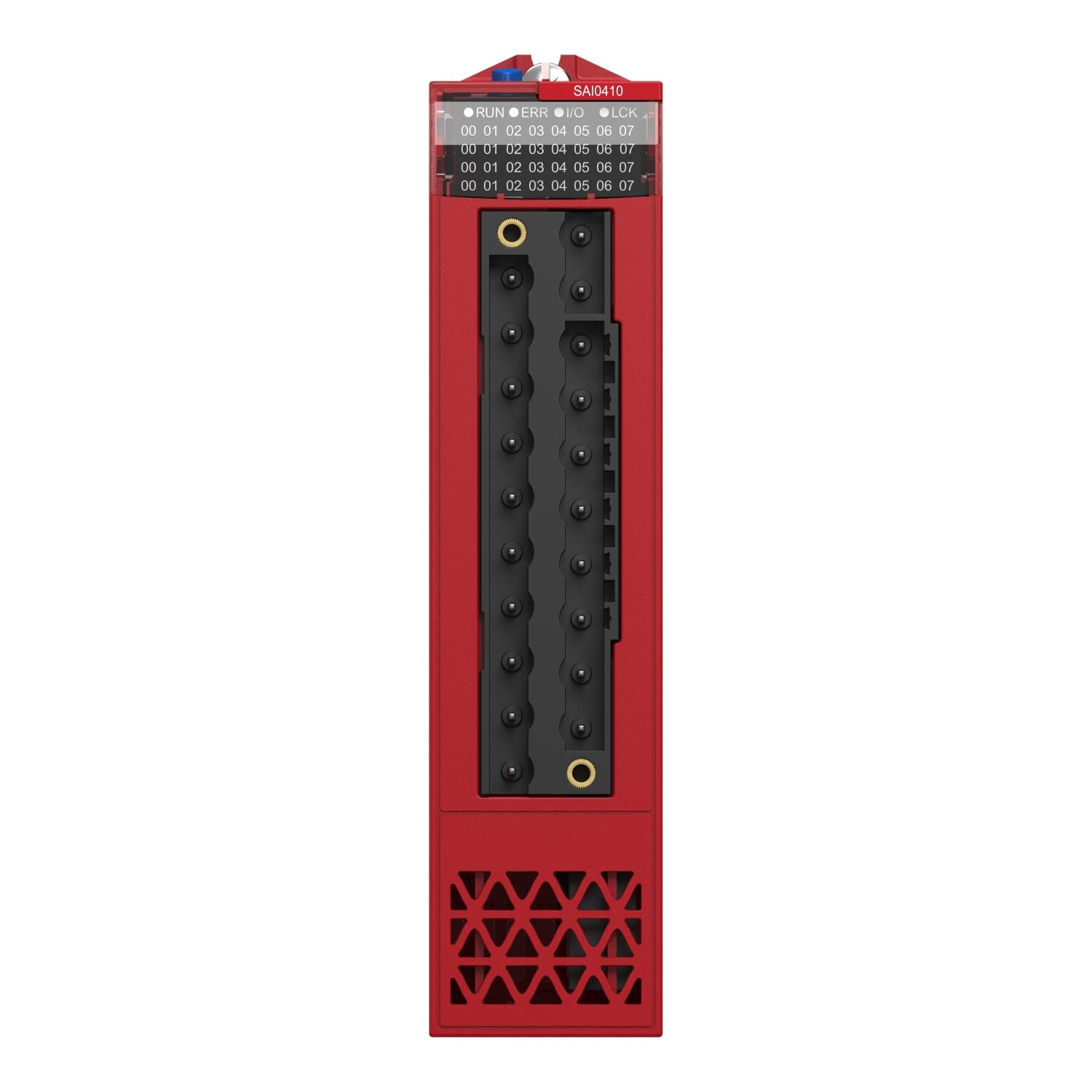

Schneider Electric analog input module. safety analog input module, Modicon X80, 4 isolated inputs, 4 to 20mA.
safety analog input module, Modicon X80, 4 isolated inputs, 4 to 20mA. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Analog input module |
| Electrical connection | 20 ways 1 connector |
| Isolation between channels | Isolated |
| Input level | High level |
| Analogue input number | 4 |
| Analogue input type | Current 4...20 mA |
| Analog/digital conversion | 16 bits |
| Analogue input resolution | 13 bits · 0...12500 counts |
| Permitted overload on inputs | 25 mA 4...20 mA |
| Input impedance | 286 Ohm |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Type of filter | Second order digital filtering |
| Nominal read cycle time | 6 ms for 4 channels |
| Measurement error | <= 0.3 % of full scale 4...20 mA - 25...60 °C |
| Temperature drift | 30 ppm/°C 4...20 mA |
| Recalibration | Internal |
| Minimum crosstalk attenuation | 120 dB |
| Digital value format | +/- 32000 in user scale · +/- 10000 by default |
| Isolation voltage | 500 V DC between channels · 1500 V DC between channels and ground · 1500 V DC between channels and bus |
| Measurement resolution | 2 µA 4...20 mA |
| Maximum conversion value | 0...25 mA 4...20 mA |
| MTBF reliability | 463000 H |
| Operating altitude | 0...2000 m · 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN · 1 LED per channel (green) channel diagnostic · 1 LED (red) ERR · 1 LED (red) I/O |
| Product weight | 0.143 kg |
| Current consumption | 200 mA at 3.3 V DC · 115 mA at 24 V DC |
| Vibration resistance | 3 gn |
| Shock resistance | 15 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Product certifications | TÜV · CSA · EAC · RCM · UL · ATEX · Merchant Navy |
| Standards | CSA C22.2 No 61010-2-201 · IEC 61131-2 · IEC 61010-2-201 · UL 61010-2-201 |
| Environmental characteristic | Gas resistant class Gx · Gas resistant class 3C4 · Dust resistant class 3S4 · Sand resistant class 3S4 · Salt resistant level 2 · Mold growth resistant class 3B2 · Fungal spore resistant class 3B2 · Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.340 kg |
| Warranty (in months) | 18 |
