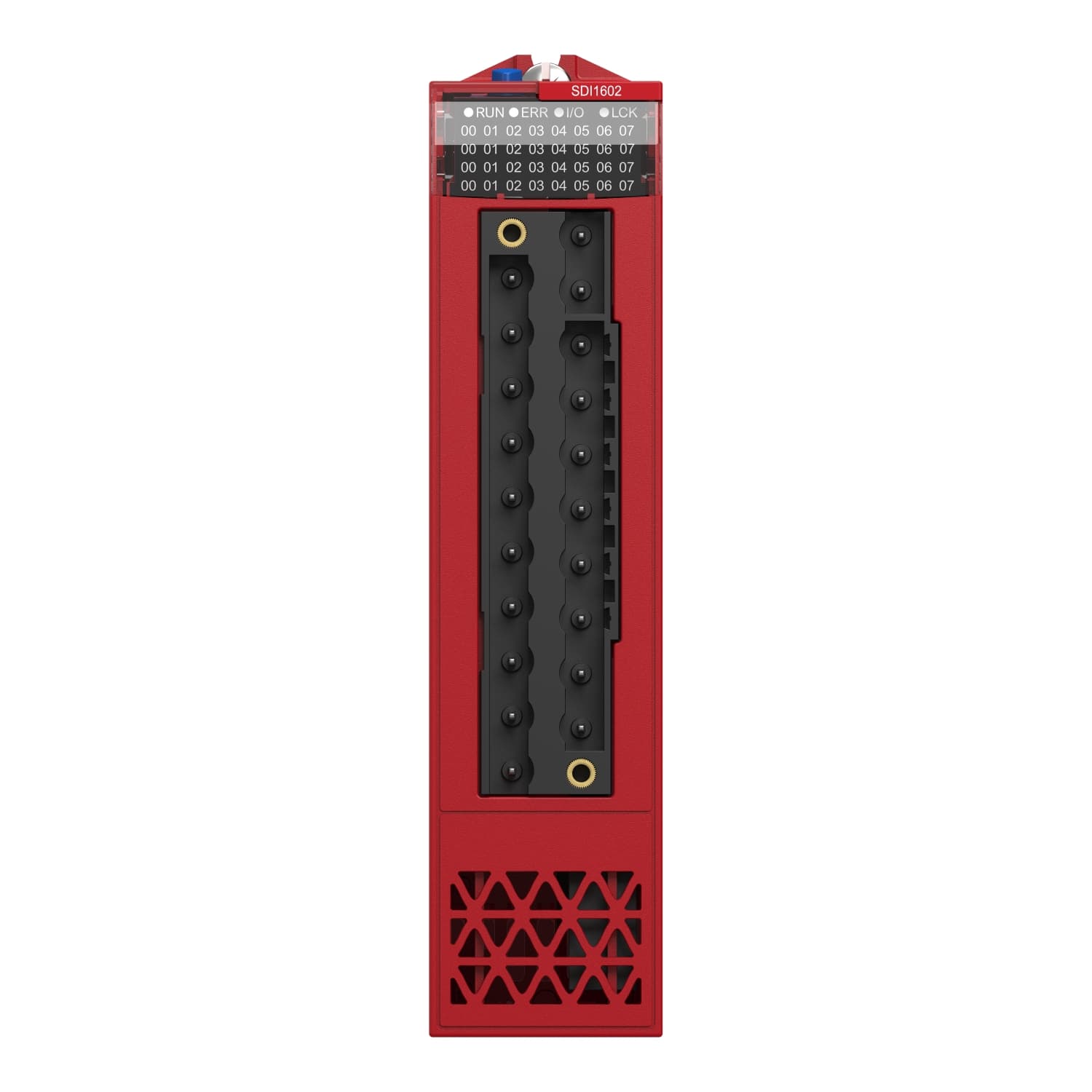

Schneider Electric discrete input module. safety discrete input module, Modicon X80, 16 inputs, 24V DC positive.
safety discrete input module, Modicon X80, 16 inputs, 24V DC positive. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Discrete input module |
| Device application | Industrial application |
| Discrete input number | 16 |
| Discrete input voltage | 24 V DC for not isolated |
| Discrete input logic | Positive logic (sink) |
| Input wiring mode | 2 or 3 wires |
| Discrete input current | 3.2 mA at 24 V DC |
| Input impedance | 7500 Ohm |
| Paralleling of inputs | Yes |
| Input protection type | Reverse polarity protection |
| Insulation resistance | > 10 MOhm 500 V DC |
| DC typical response time | 6 ms |
| DC maximum response time | 6 ms |
| Sensor power supply | : 19…30 V |
| Typical current consumption | 256 mA DC · 100 mA at 24 V DC |
| Power dissipation in W | 3.57 W |
| Isolation between channels and bus | 1500 V for 1 minute |
| MTBF reliability | 265000 H |
| Voltage detection threshold | 18 V DC sensor OK |
| Local signalling | 1 LED (green) for module operating (RUN) · 1 LED per channel (green) for channel diagnostic · 1 LED (red) for module error (ERR) · 1 LED (red) for module I/O |
| Height | 134.6 mm |
| Width | 32 mm |
| Depth | 86 mm |
| Product weight | 0.115 kg |
| IP degree of protection | IP20 |
| Protective treatment | Conformal coating |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, primary/secondary |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m · 2000...5000 m with derating |
| Environmental characteristic | Gas resistant class Gx · Gas resistant class 3C4 · Dust resistant class 3S4 · Sand resistant class 3S4 · Salt resistant level 2 · Mold growth resistant class 3B2 · Fungal spore resistant class 3B2 |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.350 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 33.000 kg |
| Warranty (in months) | 18 |
