Schneider Electric SE8000 Series sensor. EcoStruxure Building Expert ZigBee 3.0 HA Wireless Window/Door Sensor, Compatible With SE8000 Room Controller, Reporting Open/Close status.
EcoStruxure Building Expert ZigBee 3.0 HA Wireless Window/Door Sensor, Compatible With SE8000 Room Controller, Reporting Open/Close status. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Number of batteries | 1 |
|---|
| Battery type | 1 lithium battery |
|---|
| Battery size | CR2450 |
|---|
| Product or component type | Sensor |
|---|
| Battery life | 5 year(s) |
|---|
| Colour | White |
|---|
| Communication port protocol | Zigbee 3.0 HA |
|---|
| Product weight | 30 g |
|---|
| IP degree of protection | IP20 |
|---|
| Local signalling | 1 LED battery needs replacing · 1 LED programming indication |
|---|
| Mounting support | Door frame · Window frame · Wall |
|---|
| Ambient air temperature for operation | -10…50 °C |
|---|
| Product certifications | CE · FCC · RCM · EAC · UL · IC |
|---|
| Product name | SE8000 Series |
|---|
| Device short name | SED-WDC |
|---|
| Product brand | Schneider Electric |
|---|
| Range | EcoStruxure Building Expert |
|---|

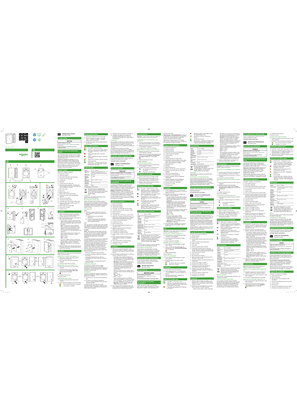

| Provided equipment | Battery · Screws · User manual · Adhesive tape |
|---|
| Mounting mode | By screws · Adhesive |
|---|
| Device composition | sensor 33 mm x 50 mm x 16.3 mm · magnet 9 mm x 50 mm x 9 mm |
|---|
| Type of operator | Trigger action wood opening contact 32 mm · Trigger action wood closing contact 30 mm · Trigger action metal opening contact 20 mm · Trigger action metal closing contact 18 mm |
|---|
| Range compatibility | EcoStruxure Building Expert SE8000 Series SE8300 room controller · EcoStruxure Building Expert SE7000 Series room controller · EcoStruxure Building Expert communication card |
|---|
| Unit Type of Package 2 | S02 |
|---|
| Number of Units in Package 2 | 40 |
|---|
| Package 2 Height | 15 cm |
|---|
| Package 2 Width | 30 cm |
|---|
| Package 2 Length | 40 cm |
|---|
| Package 2 Weight | 3.84 kg |
|---|
| Unit Type of Package 3 | P06 |
|---|
| Number of Units in Package 3 | 960 |
|---|
| Package 3 Height | 105.0 cm |
|---|
| Package 3 Width | 60.0 cm |
|---|
| Package 3 Length | 80.0 cm |
|---|
| Package 3 Weight | 112.16 kg |
|---|
| Warranty (in months) | 18 |
|---|
