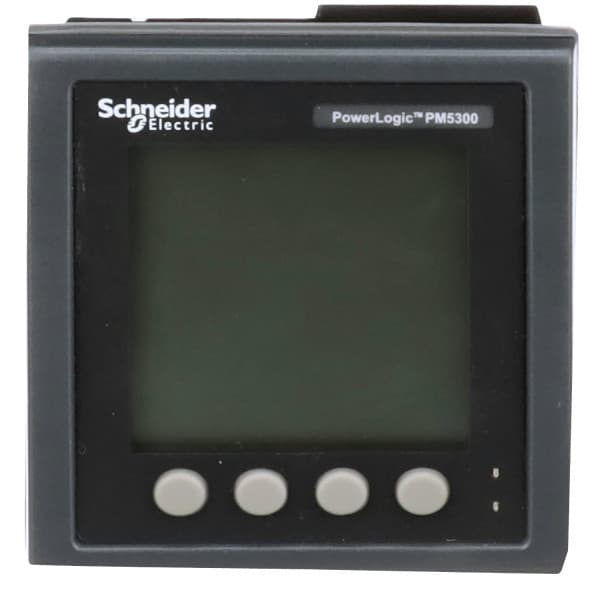

Schneider Electric PowerLogic PM5000 power meter, rated 5 A. power meter PowerLogic PM5340, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms.
Brand
Schneider Electric
Range / Series
PowerLogic
IP rating
IP51
Weight
1 kg
Complete product informationProduct description and supplied technical information
power meter PowerLogic PM5340, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms. Genuine Schneider Electric product supplied by United Force.
Technical specifications
Range
PowerLogic
Product name
PowerLogic PM5000
Product or component type
Power meter
Device short name
PM5340
Power quality analysis
up to the 31st harmonic
Device application
Multi-tariff · Power monitoring
Type of measurement
Current · Voltage · Frequency · Power factor · Energy · Active and reactive power
[Us] rated supply voltage
90...450 V AC 45...65 Hz · 100...300 V DC
Network frequency
60 Hz · 50 Hz
[In] rated current
5 A · 1 A
type of network
3P · 1P + N · 3P + N
Maximum power consumption in VA
11 VA at 415 V
Ride-through time
100 ms 120 V AC typical · 400 ms 230 V AC typical · 50 ms 125 V DC typical
Display type
Monochrome graphic LCD
Display resolution
128 x 128 pixels
Sampling rate
64 samples/cycle
Measurement current
5…9000 mA
Analogue input type
Voltage (impedance 10 MOhm) · Current (impedance <= 0.3 mOhm)
Measurement voltage
35…760 V AC 45...65 Hz between phases · 20…400 V AC 45...65 Hz between phase and neutral
Frequency measurement range
45…65 Hz
Number of inputs
2 digital
Measurement accuracy
Active energy +/- 0.5 % · Reactive energy +/- 2 % · Active power +/- 0.5 % · Apparent power +/- 0.5 % · Frequency +/- 0.05 % · Power factor +/- 0.5 · Current +/- 0.5 % · Voltage +/- 0.5 % · Apparent energy +/- 0.5 % · Reactive power +/- 2 %
Accuracy class
Class 0.5S active energy conforming to IEC 62053-22
Number of outputs
2 relay · 2 digital
Information displayed
Tariff (4)
Communication port protocol
Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V · BACnet IP
Communication port support
ETHERNET
Data recording
Data logs · Alarm logs · Time stamping · Event logs · Min/max of instantaneous values · Maintenance logs
EN 50470-1 · IEC 62053-24 · IEC 60529 · UL 61010-1 · IEC 62053-22:2020 · EN 50470-3 · IEC 61557-12:2015 · IEC 62053-23:2020 · IEC 62052-11:2020 · IEC 62052-31:2015
Product certifications
CE conforming to IEC 61010-1 · CULus conforming to UL 61010-1
Width
96 mm
Depth
72 mm
Height
96 mm
Product weight
430 g
Electromagnetic compatibility
Limits for harmonic current emissions class A conforming to IEC 61000-3-2 · Electrostatic discharge level 4 conforming to IEC 61000-4-2 · Conducted RF disturbances level 3 conforming to IEC 61000-4-6 · Magnetic field at power frequency level 4 conforming to IEC 61000-4-8 · Conducted and radiated emissions class B conforming to EN 55022
IP degree of protection
IP51 display: conforming to IEC 60529 · IP30 rear: conforming to IEC 60529
Relative humidity
5…95 % at 50 °C non-condensing
Pollution degree
2
Ambient air temperature for operation
-25…70 °C meter · -20…70 °C display · -25…-20 °C (with reduced performance) display
